There are many options when it comes to MCB or MCCB cases, all designed to protect the device and keep it safe. Most standard cases are solid and opaque, which provides basic protection but hides what’s happening inside.

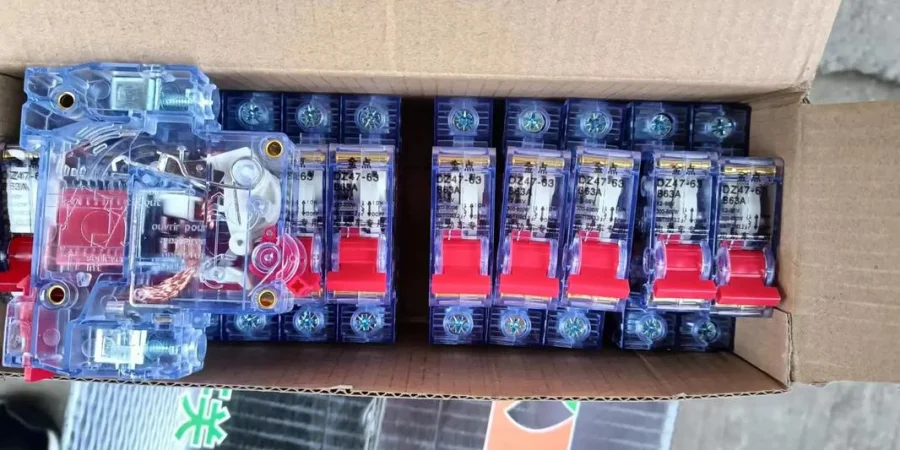

There are also many situations where a transparent case can be useful. On busy construction sites, in training workshops, or during temporary power setups, breakers are often moved, handled, or checked frequently. Being able to see inside gives a sense of connection to the equipment and a clearer view of what’s going on during everyday work.
The choice of case can influence how easily electrical systems are monitored and maintained. In fast-moving or high-pressure environments, having clear access and visibility can make work feel more manageable and increase confidence in the equipment.
What Are Transparent Case Circuit Breakers?
Transparent case circuit breakers, though, are different. They’re not just another flashy idea—they’ve stuck around because they solve real, everyday problems on construction sites.

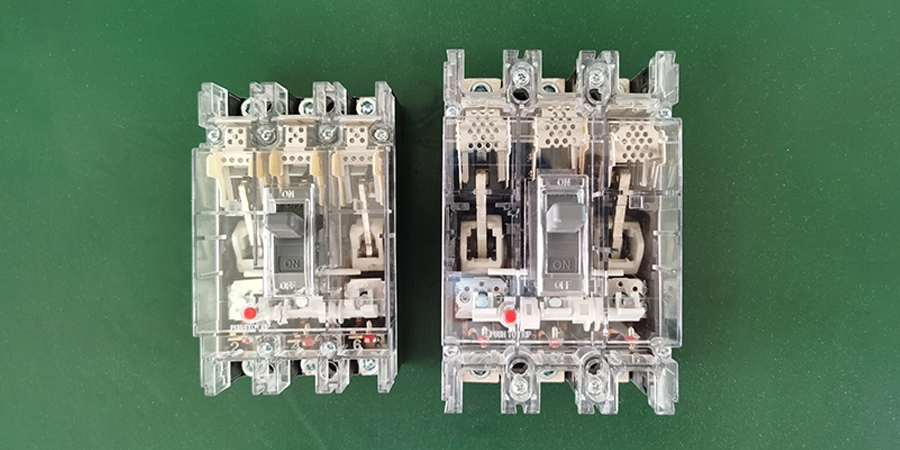

In simple terms, think of a transparent case circuit breaker as the more open cousin of a molded case circuit breaker. Instead of hiding the inner workings behind solid plastic, these devices let you see directly into the core components. Contacts, arc chamber, trip mechanism—all clearly visible through a transparent housing.
How the Design Works
Transparent case circuit breakers (TCCBs) operate just like standard MCCBs. The difference lies in the housing material. Instead of opaque thermoplastic, TCCBs use specialized transparent polycarbonate that provide the same level of insulation and safety while letting you see inside.
And this isn’t just about slapping on some clear plastic. These materials are tested extensively to meet the same safety standards as traditional breakers. More importantly, the transparency covers the exact areas where problems usually occur. That means you can observe the main contacts, monitor the arc chamber, and verify the trip mechanism—turning maintenance from guesswork into informed action.
What You Can See—and Why It Matters
| Component | What You Can Observe | Why It Matters |
|---|---|---|
| Main Contacts | Wear, pitting, discoloration | Helps prevent sudden failures |
| Arc Chamber | Carbon buildup, damage | Keeps switching reliable |
| Trip Mechanism | Position, movement | Confirms proper operation |
The housing is also designed with real-world conditions in mind. Construction sites are tough—dust, moisture, and fluctuating temperatures are the norm. Modern TCCB housings are built to withstand these environments without yellowing, cracking, or losing transparency over time.
Why They Shine on Construction Sites?

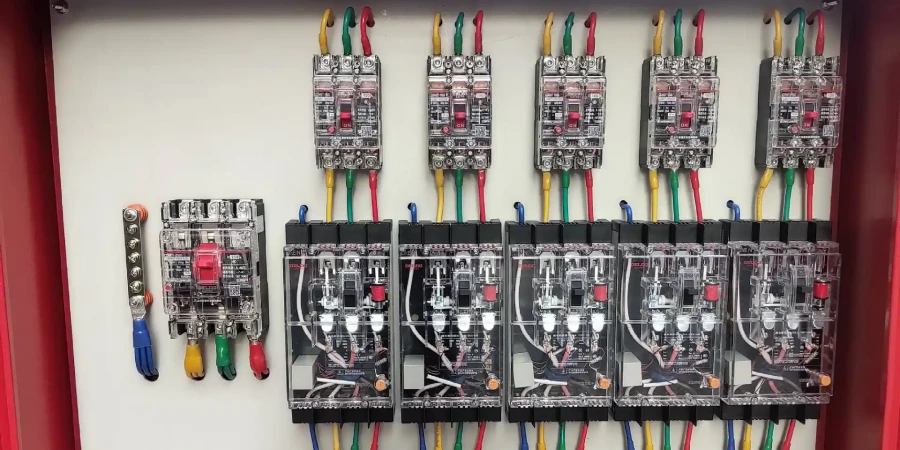

If there’s one place where TCCBs prove their worth, it’s in temporary power systems. Construction projects demand equipment that’s portable, durable, and easy to maintain. Standard breakers can do the job, but they keep you in the dark—literally—until something goes wrong.
TCCBs, on the other hand, fit right into existing distribution boards without changing specs or mounting. What they add is visibility. Electricians can spot wear or buildup during routine inspections, often catching issues weeks before they cause costly downtime. In fast-moving, high-pressure environments, that kind of foresight makes a real difference.
Safety Benefits for Construction Workers
Construction sites pose unique electrical safety challenges—ones that traditional breakers can’t always make obvious. Workers may know protection is there, but they often can’t tell how well it’s working. Transparent case circuit breakers (TCCBs) close that gap by making protection visible and easy to understand.
When workers can actually see electrical systems operating, safety culture improves. Watching contacts open and close, seeing arc chambers contain faults, and observing trip mechanisms react to overloads turns abstract electrical concepts into something real and memorable.
Building Safety Awareness Through Visibility
The psychological impact of transparency is significant. When workers can observe protection devices in action, they develop a stronger grasp of electrical safety principles. They learn what “normal” looks like, and they’re quicker to spot when something’s wrong.
This constant visual feedback creates more engaged safety practices. Instead of relying only on testing schedules or expert inspections, workers themselves become active participants—reporting issues earlier and reducing the risk of sudden failures. Put simply, when safety is visible, it becomes everyone’s responsibility.
Transparent housings also prove valuable in emergencies. First responders and electricians don’t need to open panels blindly—they can immediately see whether contacts are welded shut, arc chambers are damaged, or trip mechanisms have done their job. That quick visibility saves time and reduces risk when it matters most.
Making Training More Effective
TCCBs are also powerful teaching tools. In training sessions, new workers can watch in real time how breakers behave under normal and fault conditions. This bridges the gap between classroom theory and hands-on experience, making lessons stick.
The benefits don’t stop there. On the job, experienced workers can point out visible components and explain their function, turning everyday inspections into learning opportunities. This kind of peer-to-peer teaching strengthens site-wide safety culture and preserves valuable know-how even as teams change.
Spotting Problems Before They Become Failures
With TCCBs, issues that usually stay hidden become visible to anyone walking by. Burnt contacts, discoloration, or a damaged arc chamber can be spotted immediately—without waiting for scheduled testing. In effect, every worker becomes an extra set of eyes watching over the system.
| Safety Factor | Traditional Method | With TCCB |
|---|---|---|
| Problem Detection | Scheduled testing only | Continuous visual monitoring |
| Training Effectiveness | Abstract concepts | Observable operation |
| Emergency Response | Blind troubleshooting | Clear visual assessment |
This transparency also makes inspections smoother. Safety officers can quickly assess breaker conditions without dismantling equipment, saving time while still ensuring compliance.
Maintenance and Troubleshooting Efficiency
Being able to see inside protection devices changes maintenance from a time-consuming process into a much faster, more precise routine. With traditional breakers, teams need to schedule disassembly just to check internal conditions—an approach that eats up labor hours and introduces the risk of reassembly errors. Transparent case circuit breakers (TCCBs) remove much of that uncertainty by making component conditions visible at all times.
Troubleshooting also speeds up dramatically. Instead of starting with electrical tests, the first step can be a simple glance. Burnt contacts, damaged arc chambers, or jammed mechanisms stand out immediately through the clear housing. This quick visual triage helps teams prioritize: fix urgent issues on the spot, and plan less critical maintenance for later.
Cutting Downtime Through Faster Inspections
The time savings add up fast. A quick scan that takes seconds can replace inspection routines that normally take 10–15 minutes per device. On large construction projects with dozens of panels, this translates into substantial labor savings and less disruption to ongoing work.
TCCBs also make predictive maintenance far more practical. Instead of relying on calendar-based schedules—or waiting until a failure occurs—teams can watch wear patterns develop over time and replace units only when they show visible signs of nearing end-of-life.
Documentation becomes simpler too. Clear photographs of internal conditions provide undeniable evidence for work orders and budget approvals, helping project managers understand why replacements are necessary.
Streamlining Troubleshooting
Visual access improves diagnostics just as much as it helps inspections. If contacts look clean, arc chambers show no buildup, and trip mechanisms sit in the correct position, technicians can rule out internal faults quickly and turn their focus to external causes.
This process of elimination prevents wasted time chasing false leads or swapping out parts unnecessarily. With TCCBs, maintenance teams gain confidence in their assessments because they’re working from what they can see, not just from indirect electrical measurements.
The Cost-Benefit Advantage
| Traditional MCCB | Transparent Case CB | Improvement |
|---|---|---|
| 10-minute disassembly inspection | 30-second visual check | ~20× faster |
| Scheduled replacement intervals | Condition-based replacement | 20–40% longer service life |
| Reactive troubleshooting | Visual problem identification | ~50% faster resolution |
Over time, these efficiency gains compound. On temporary construction projects—where equipment is constantly relocated—quick visual checks ensure reliable operation across sites while keeping maintenance overhead to a minimum.
Applications Beyond Construction
While construction sites are the most obvious setting for transparent case circuit breakers (TCCBs), these versatile units excel in many other environments. Any situation involving temporary power, frequent equipment moves, or intensive training can benefit from the visual monitoring capabilities that TCCBs provide.
The rental industry has been an early adopter, using TCCBs in distribution boards for temporary setups. Event organizers, trade show exhibitors, and emergency response teams all need reliable power distribution that can be quickly assessed. The visual feedback these breakers provide ensures safe and confident deployment.
Event and Exhibition Power
Temporary events bring unique electrical challenges: rapidly changing loads, varying environmental conditions, and frequent interaction by non-electrical personnel. TCCBs address these challenges effectively.
Visual monitoring helps event managers and technicians maintain safe, reliable systems throughout an event. Setup and teardown procedures benefit as well—teams can quickly scan equipment during load-in, catching problems before they disrupt critical operations.
The documentation advantages are significant, too. Photographs of breaker conditions provide clear evidence for insurance and safety compliance, supporting liability management and maintenance accountability.
Educational and Training Facilities
Vocational schools and training centers have discovered TCCBs’ exceptional teaching value. These devices allow hands-on electrical training with real operating conditions—without the risks of opening live panels or relying solely on expensive demonstration equipment.
Students gain practical experience with real equipment while observing actual operating conditions. The learning progression from classroom theory to visual observation to hands-on practice creates more effective training outcomes. Graduates enter the workforce with better understanding of electrical protection principles and practical troubleshooting skills.
Emergency and Mobile Power Applications
Emergency power systems demand maximum reliability with minimal maintenance. TCCBs provide visual confirmation of equipment readiness, allowing first responders to assess systems quickly without specialized testing tools or deep electrical expertise.
Mobile power units also benefit during deployment. Visual checks give confidence that systems are operating correctly, reducing the risk of failures in critical applications where downtime could have serious consequences.
| Application Type | Primary Benefit | Secondary Advantages |
|---|---|---|
| Event Power | Quick condition assessment | Training value, documentation |
| Educational Labs | Teaching effectiveness | Student safety, equipment protection |
| Emergency Systems | Reliability assurance | Rapid deployment, minimal training |
| Mobile Power | Deployment confidence | Maintenance efficiency, problem prevention |
Specialized Industrial Applications
Some industrial environments have adopted TCCBs for high-reliability processes that require frequent monitoring. Manufacturing facilities with critical production lines use visual inspection to supplement automated protection systems, giving extra assurance during high-value operations.
Research and development teams also benefit. Engineers can observe protection system behavior under test conditions, gathering data to support product development, safety validation, and prototype evaluation.
The versatility of TCCBs continues to grow. Any environment where electrical reliability, training effectiveness, or maintenance efficiency matters can gain value from the unique visibility these units provide.
Conclusion
Transparent case circuit breakers show how visibility can transform not just maintenance, but the way we interact with technology.
Making hidden systems observable encourages curiosity, proactive safety, and smarter decision-making—reminding us that seeing clearly often leads to better outcomes in any complex system.
