On my first day at the factory, I stood by the shipping area and noticed something curious. Some orders were fully assembled MCCBs, ready to go, while others were neatly packed kits of parts—cases, contacts, trip units—all waiting to be shipped separately. At first, it seemed a bit confusing. Why send some units complete and others in pieces?
As I watched the staff prepare the SKD kits for shipment, it suddenly clicked. Each component was carefully pre-tested and organized, designed to make local assembly quick and foolproof. It wasn’t just about saving space or costs—it was a clever way to balance precision engineering with practical on-site flexibility.
That moment got me thinking: how does this approach actually work, and why are so many industries choosing SKD kits over fully assembled MCCBs? Over time, I realized that understanding these kits isn’t just technical—it’s about seeing how smart design solves real-world operational challenges.
Understanding MCCBs and SKD Kits
A Molded Case Circuit Breaker (MCCB) is basically your electrical safety guard. It’s designed to handle anywhere from 15 amps all the way up to 2,500 amps or more. Think of it as a smart switch that automatically cuts power when things go wrong—like when there’s too much current flowing through your system or when a short circuit happens. But it’s not just automatic; you can also manually switch it off when you need to do maintenance work.
Now, SKD stands for Semi Knocked-Down. When you order an SKD kit, you’re not receiving a fully assembled breaker in a box. Instead, you get major components that are partially assembled and ready to be put together locally with basic tools. It’s a bit like receiving a sophisticated LEGO set—only for industrial electrical equipment.
Why SKD Kits Matters?
The beauty of SKD packaging is in how it changes the logistics and costs. When manufacturers ship these kits, they’re sending functional modules: the case, internal contacts, trip units, arc chutes, terminals, and all the documentation you need. Each piece is already manufactured and tested at the factory, but they’re not fully assembled into the final product yet.
Here’s where it becomes practical. Because SKD kits arrive partially disassembled, they take up significantly less space in shipping—reducing freight costs. More importantly, many countries classify SKD imports differently from fully assembled products, often resulting in lower import duties.
The assembly part is surprisingly straightforward. You don’t need a specialized engineer or complex machinery. With the documentation provided and some basic tools, trained workers can put these together on-site or at a local assembly facility. The modules essentially snap or bolt together following clear instructions. This is intentional—manufacturers design SKD kits so that local teams can handle final assembly without needing the same level of equipment that the original factory uses.
| Aspect | Fully Assembled MCCB | MCCB SKD Kit |
|---|---|---|
| Shipping Volume | Higher | Lower (30-40% reduction) |
| Import Duties | Standard rates | Often reduced rates |
| Customization | Limited | Flexible during assembly |
| Lead Time | Longer (factory to site) | Shorter (local assembly) |
| Local Content | None | Can meet regional requirements |
What makes this approach work is the balance. The manufacturer handles all the complex, precision work—machining contacts, calibrating trip units, molding the case. The local side handles the simpler assembly steps. It’s a smart division of labor that keeps quality high while cutting costs and time.
What’s Inside: Components and Assembly Process
Over the years, watching a few MCCB SKD assembly sessions has given me a real appreciation for how well-engineered these kits are. Every component has a clear purpose, and understanding what’s inside helps explain why the SKD approach works so well.
Core Components You’ll Find

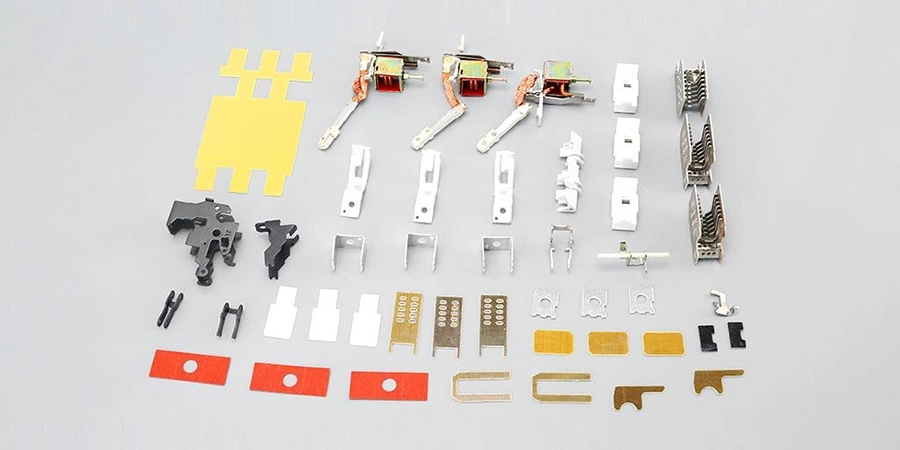

When you open an MCCB SKD kit, you’ll usually find six main groups of components.

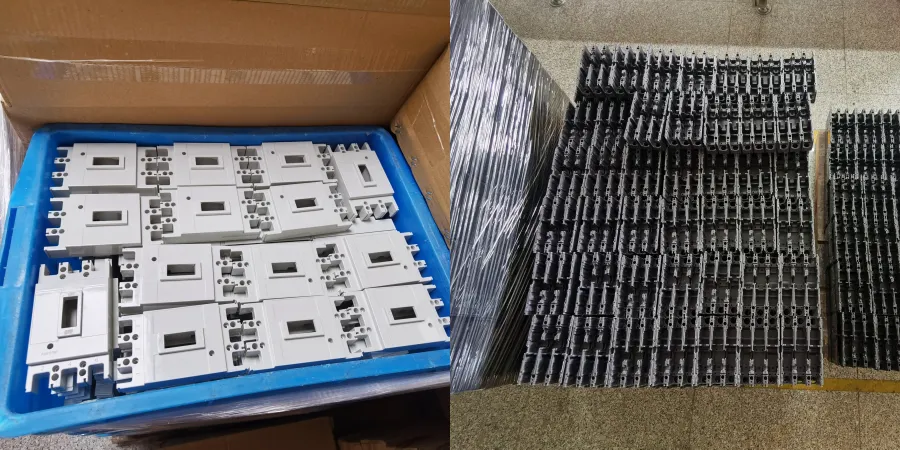

- Molded case sub-assembly: This forms the outer shell, typically made from thermoset resin or glass-reinforced polyester. It’s not just ordinary plastic—it’s designed to handle high temperatures and provide electrical insulation. The case often comes in two or three sections, which will eventually house all the internal parts.
MCCB Covers and Bases - Trip unit module: This is where the “intelligence” of the breaker lives. Depending on the model, it can include thermal elements, magnetic sensors, or electronic components. Each module is pre-calibrated at the factory to detect overloads or short circuits at precise current levels. Because this calibration is critical, it arrives sealed and ready to install—no adjustments needed during local assembly.
- Arc chute plates: These might look simple, but they serve an important purpose. When a breaker trips, an electric arc forms between the contacts. Arc chute plates break and cool this arc quickly, protecting the breaker from damage. In an SKD kit, these plates usually come pre-stacked and ready to fit into place.
- Contact assemblies: These are the parts that actually make and break the electrical connection. Fixed and moving contacts are machined to tight tolerances and often coated to resist wear. In SKD kits, they arrive pre-machined and ready to install.
- Terminal blocks and hardware: This includes all the connection points—lugs, screws, insulating barriers, and mounting brackets. Everything is sized and selected for the specific breaker rating, ensuring smooth integration with your external wiring.
How Assembly Actually Works?
The workflow of SKD kits is designed to separate complex, precision work from simpler tasks. At the manufacturer’s facility, critical components are made with high-precision equipment. Contact surfaces are machined to exact specifications, trip units are assembled and calibrated, and case sections are molded under controlled conditions. Every component undergoes quality testing before it’s ever packed into a kit.
When the components are ready, they’re carefully sorted and packaged. Parts that belong together—like trip unit components or arc chute plates—are grouped in clearly labeled packages. Protective inserts prevent shifting or damage during shipping, and some manufacturers even color-code packages to match assembly steps.
Local assembly is the final step, and it’s designed to be simple. The included documentation guides you through each step. Typically, you start by assembling the case sections, then install contact assemblies, add arc chutes, mount the trip unit, attach terminals, and finally secure everything. Only basic hand tools—screwdrivers, wrenches, maybe a torque wrench—are needed.

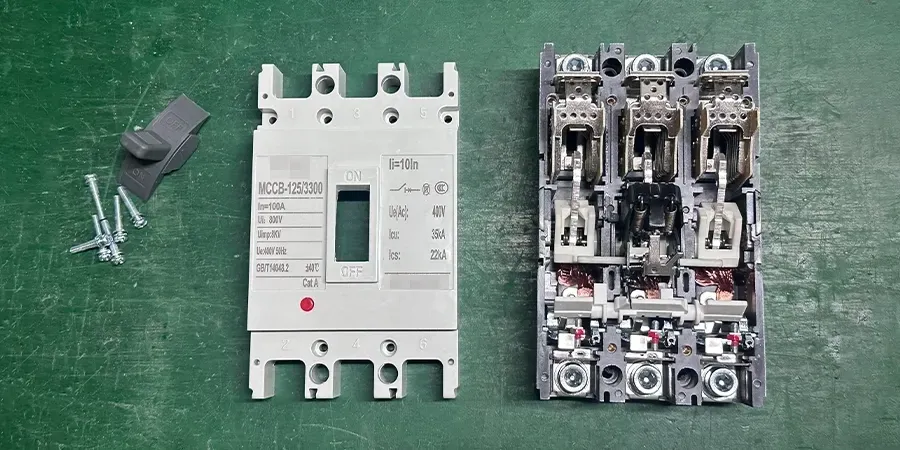

There’s also another common case. Many of our customers aren’t very familiar with the assembly process, so they often ask us to help. In those situations, we pre-assemble the SKD kits up to the final stage at the factory, leaving only the cover installation for them to complete. After assembly, they still perform basic functional testing to ensure everything operates properly. This makes the process quick, simple, and still fully compliant with the SKD approach.
| Assembly Step | What Happens | Tools Needed |
|---|---|---|
| 1. Case Assembly | Join housing sections, install guide rails | Screwdriver, alignment pins |
| 2. Contact Installation | Mount fixed and moving contacts | Wrench, positioning jig |
| 3. Arc Chute Setup | Stack and secure arc plates | Snap-fit or screws |
| 4. Trip Unit Mounting | Install calibrated trip module | Screwdriver, lock nuts |
| 5. Terminal Connection | Attach lugs and barriers | Torque wrench, screwdriver |
| 6. Final Check | Verify assembly, test operation | Continuity tester, manual |
Once you’ve done it a few times, the whole process takes about 15–30 minutes per unit, depending on the breaker size. That’s fast enough to make local assembly practical, yet slow enough to ensure quality isn’t compromised.
Key Benefits for B2B Customers
This is where the rubber meets the road. I’ve spoken with many of our customers, and when they explain why they switched to SKD kits, a few themes come up consistently.
Real Cost Savings That Add Up
Let’s talk money first—because it’s usually the first thing that gets attention. The most obvious savings come from lower import tariffs and reduced freight costs. Fully assembled MCCBs take up a lot of space in shipping—you’re essentially paying to transport air. SKD kits, on the other hand, pack components more efficiently, allowing 20–35% more units per container.
Import duties vary by country, but the trend is clear: partially disassembled products are often taxed at lower rates than finished goods. In some markets, this alone can reduce landed costs by 10–15%. Combine that with freight savings, and total per-unit cost reductions of 15–20% are common. For large orders, these savings can quickly add up.
There’s another benefit that’s less obvious: inventory flexibility. With SKD kits, distributors can stock modules and configure different MCCB models as orders come in. Instead of holding 20 fully assembled breaker types, they might keep 10 module types that can be mixed and matched. This reduces inventory carrying costs and minimizes the risk of stocking the wrong products.
Faster Time to Market
Speed matters in construction and industrial projects—every day of delay costs money. SKD kits can shorten total lead times by up to 30% compared to fully assembled units.
Here’s why: when you order fully assembled units, the manufacturer has to complete all assembly steps, do final testing, pack the finished products, and then ship them—often from overseas. That’s a long chain. With SKD, the manufacturer can prepare kits faster because they’re not doing final assembly. The kits ship sooner, and once they arrive, local assembly happens in parallel with your project preparation. Instead of assembly time adding to your lead time, it overlaps with other activities.
Customization Without Complexity
One of the best things about SKD kits is flexibility. Local assembly lets you integrate customizations without sending products back to the factory. Want company branding on the case? Add it during assembly. Need a specific accessory or communication module? Install it on-site. Compliance labeling or documentation for local regulations? Handle it during assembly.
Technical customizations are just as easy. Some customers require specific trip curves or auxiliary contacts. With SKD kits, you can swap in the right trip unit module or add accessories without disrupting the supply chain. Doing that with fully assembled units usually means a special order and weeks of waiting.
Quality Control and Error Reduction
You might think local assembly increases the chance of errors—but the opposite is often true. Critical components—contacts, trip units, arc chutes—are pre-machined and pre-calibrated at the factory, where precision equipment and quality control ensure accuracy.
Local assembly focuses on simpler mechanical tasks: fitting parts together, tightening screws, and connecting terminals. Clear instruction and sometimes color-coded components make mistakes rare. Several companies have even reported lower defect rates after switching to SKD kits, since all precision work happens at the factory.
In short, SKD kits give B2B customers a way to get high-quality products faster, cheaper, and with more control over the final configuration—a combination that’s hard to beat.
Final Thoughts
MCCB SKD kits aren’t just a purchasing choice—they’re a strategic tool to cut costs, speed up delivery, and increase flexibility. If you’re facing high costs or long lead times with fully assembled MCCBs, SKD kits are worth considering—the transition is straightforward, and the operational gains can be significant.
