The first time I saw an electronic MCCB in a factory showroom, it didn’t look that different from the breakers I already knew—same solid body, same familiar switch. Only a small display and a few communication ports hinted that it might be something more.
Then an engineer explained that this breaker didn’t rely on heat or magnetism at all. Instead, a microprocessor inside monitored current and voltage in real time, deciding within milliseconds when to trip. It wasn’t reacting—it was thinking.
That simple difference changed how I saw circuit protection. Electronic MCCBs don’t just stop faults; they record, analyze, and communicate. They turn a basic safety device into a smart system component—and that’s where the real value begins.

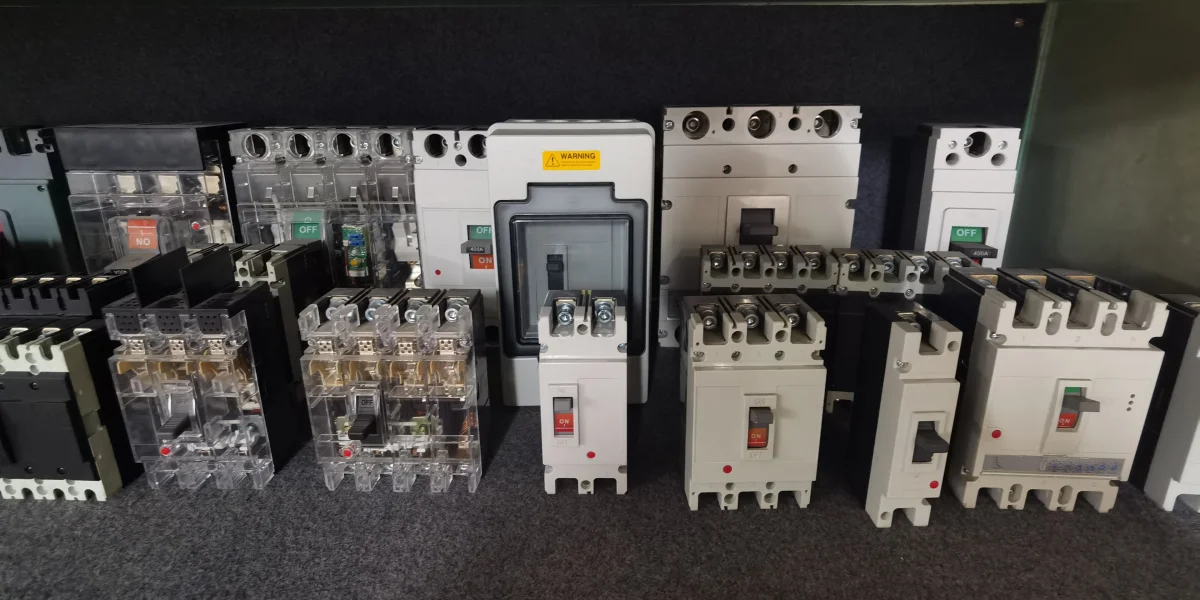

What Is an Electronic MCCB?
An electronic MCCB replaces the traditional thermal-magnetic trip mechanism with a digital trip unit. Instead of depending on a bimetal strip that bends when heated or a magnetic coil that reacts to current surges, electronic MCCBs use microprocessors to monitor your electrical system in real time.
It’s a bit like comparing a mechanical thermostat to a smart thermostat—both manage temperature, but one does it with far more precision, flexibility, and insight.
How the Digital Trip Unit Actually Works?
At the heart of every electronic MCCB lies a digital trip unit made up of three key components that work together.
First, the sensing module constantly measures current, voltage, and frequency. This isn’t just a simple on-off function—it continuously samples what’s happening in your circuit and feeds that information to the processor.
Next, the microprocessor analyzes these readings against the protection settings you’ve programmed. These settings cover long-time protection for overloads, short-time protection for moderate faults, instantaneous protection for severe short circuits, and ground-fault protection. In other words, it’s continuously deciding whether your system is operating safely or needs immediate intervention.
Finally, when a fault is detected, the release mechanism—usually a solenoid or stored-energy device—receives a signal to trip the breaker. Because this process is purely electronic, it happens within milliseconds. There’s no need to wait for bimetal parts to heat up or magnetic fields to build enough force, which makes electronic breakers significantly faster and more consistent. (Related Reading: How Bimetal Strips Work in Circuit Breakers?)
What makes this setup so effective is that it almost completely removes the mechanical delays and inconsistencies common in traditional breakers. For instance, thermal trips can have a deviation of up to ±20%, influenced by temperature or previous load history. In contrast, electronic units maintain a remarkable ±2% accuracy regardless of the environment. In facilities where precise coordination between upstream and downstream protection devices is critical, this level of accuracy can mean the difference between quickly isolating a fault and shutting down the entire system.
On top of that, the microprocessor also records every event—every time the breaker trips, every near-trip condition, and even patterns that might hint at developing problems. Through built-in communication ports, this data can be accessed and analyzed, offering insights you could never get from a mechanical breaker.
| Component | Function | Advantage Over Mechanical |
|---|---|---|
| Sensing Module | Measures current, voltage, frequency | Continuous real-time monitoring vs. reactive response |
| Trip Unit Microprocessor | Processes data against programmed settings | Adjustable thresholds vs. fixed mechanical characteristics |
| Release Mechanism | Commands physical trip action | Consistent millisecond response vs. variable thermal/magnetic timing |
Why Choose Electronic Over Thermal-Magnetic?
I’ve often been asked why anyone would pay extra for electronic breakers when thermal-magnetic MCCBs have been working reliably for years. The truth is, there’s a difference between a breaker that simply works and one that performs optimally under all conditions. Electronic MCCBs provide that extra precision, flexibility, and reliability that traditional thermal-magnetic units cannot match.
Higher Accuracy and Precision
The most noticeable difference shows up clearly in how they handle marginal conditions. A thermal-magnetic breaker might be rated to trip at 125% of its rated current, but that trip can vary between 120% and 130%, depending on temperature, how recently it’s tripped before, and manufacturing tolerances. Electronic MCCBs, by contrast, hold an impressive ±2% accuracy regardless of these factors.
Why does this matter in practice? It allows protection to be set closer to the actual load without risking nuisance trips. For example, a plastics manufacturer experienced frequent breaker trips during injection molding startup. The inrush current hovered right at the edge of the thermal breaker’s tolerance, causing trips on some days but not on others. Switching to electronic breakers with precisely calibrated short-time settings solved the problem entirely—thresholds could be set at exactly eight times the rated current for 0.1 seconds, and performance became consistent every single time.
This precision also improves coordination. When multiple protection levels are cascaded—main breakers, distribution breakers, branch circuit protection—you need predictable trip behavior so the breaker closest to the fault opens first. The tighter tolerances of electronic units make this coordination more reliable and allow you to reduce the time separation between protection levels, which ultimately limits fault damage.
Adjustable Protection Settings
Traditional MCCBs provide a single protection curve determined by their fixed thermal and magnetic elements. If your load changes or you need different protection parameters, you either replace the breaker or accept suboptimal protection. Electronic MCCBs could totally remove this limitation.
Using software interfaces or built-in displays, you can program different protection curves for long-time, short-time, instantaneous, and ground-fault protection. This flexibility can save significant time and money during equipment upgrades or retrofits. Instead of replacing multiple breakers when load patterns or operating currents change, electronic MCCBs can be quickly reprogrammed to match the new requirements—often just a few hours of work instead of days of downtime and the cost of purchasing new breakers.
The adjustability also helps during commissioning. You can start with conservative settings, observe actual load behavior through the breaker’s monitoring functions, then fine-tune the protection curves based on real data rather than theoretical calculations. This iterative approach often reveals that loads behave differently than the design assumptions predicted.
This flexibility also helps during testing. You can start with conservative settings, observe real load behavior through the breaker’s monitoring features, and fine-tune protection curves based on actual data, not just calculated values. In many cases, the real load patterns turn out to be different from what the design had predicted.
Real-Time Monitoring and Communication Capabilities
Electronic MCCBs transform how maintenance teams interact with electrical systems. They can communicate with central monitoring systems, reporting current, voltage, power consumption, trip history, and diagnostic information in real time.
For example, a data center operations team was able to catch a problem before it caused an outage. One circuit’s current was gradually trending upward over several weeks—still below trip levels. Investigation revealed a cooling fan motor bearing failing, drawing more current as friction increased. The team scheduled replacement during a maintenance window rather than reacting to an emergency trip.
The communication capability also supports remote configuration changes. Rather than sending someone to physically access breakers in distant or difficult-to-reach locations, you can adjust settings from a central workstation. This becomes particularly valuable in facilities with multiple buildings or in renewable energy installations spread across large areas.
Safety and Energy Management Benefits

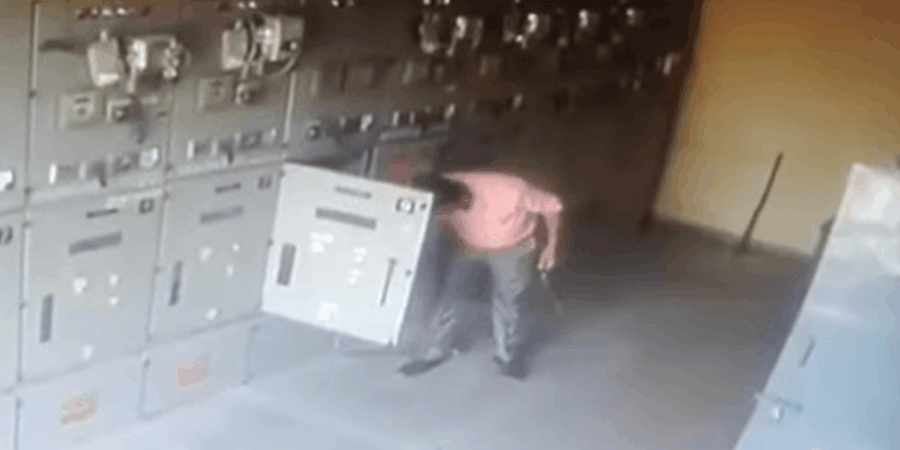

Electronic MCCBs trip faster than thermal-magnetic breakers, which helps reduce the energy released during an arc flash. Arc flash is one of the most dangerous risks for electrical workers, and even saving a few milliseconds in response time can make a big difference. Faster trips can also lower the level of protective gear needed in some cases.
Beyond safety, electronic breakers support energy efficiency without the need for additional metering. They allow tracking of power consumption by circuit, identification of unnecessary loads, and measurement of power factor.
They also support smarter maintenance. Instead of waiting for something to break or following a fixed schedule, maintenance can be planned based on real data. This helps prevent unexpected downtime and can save money over time.
Where Electronic MCCBs Make the Biggest Impact?
When I talk to engineers and facility managers about where electronic MCCBs make the most sense, they often assume these breakers are only for high-tech industries. That’s not quite true. While some sectors were early adopters, the technology is now common in any environment where precise protection, monitoring, or communication adds measurable value.
Data Centers
Data centers were among the first major adopters—and for good reason. These facilities cannot tolerate downtime—every minute of outage can cost thousands of dollars in lost service and potential data loss. Electronic MCCBs provide the rapid fault detection and integrated communication that operators rely on.
In modern data centers, electronic MCCBs are integrated into centralized monitoring systems that track every circuit in real time. These breakers continuously report phase-level current, power consumption, and temperature data to the control system. When any parameter nears a warning threshold, operators receive alerts that allow them to take corrective action before a trip occurs. This proactive monitoring approach helps prevent outages by identifying issues such as overloaded circuits, loose connections, or abnormal current patterns from failing IT equipment.
Remote monitoring also reduces the need for routine physical inspections. Staff can check breaker status, analyze load trends, and adjust settings from a safe, centralized location—improving both safety and operational efficiency.
Renewable Energy Systems
Solar arrays and wind farms present unique protection challenges that electronic MCCBs handle more effectively than traditional breakers. Because power output fluctuates constantly with weather conditions, thermal-magnetic breakers can misinterpret these variations as faults, leading to nuisance trips.
Solar and wind energy systems require circuit protection that can adapt to fluctuating output levels. In solar installations, for example, rapid generation swings during partly cloudy conditions can cause traditional thermal-magnetic MCCBs to trip unnecessarily. Electronic MCCBs, equipped with programmable protection curves, avoid this issue by distinguishing between normal operating variations and genuine fault conditions. This ensures stable operation without nuisance trips, even under highly variable load and generation profiles.

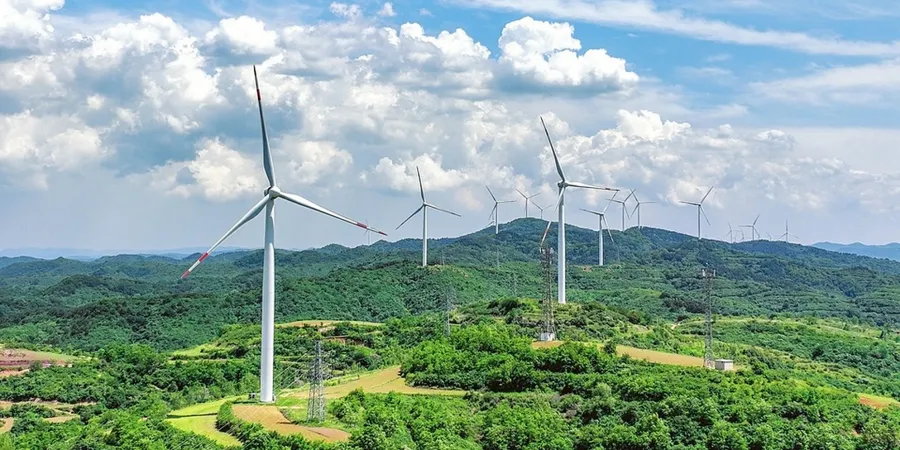

Wind turbine installations benefit from the same intelligence. Since turbines are often located in remote areas, communication capabilities allow maintenance teams to review breaker status, trip history, and current data remotely. Technicians can diagnose problems before traveling to the site, bringing the correct tools and parts on the first visit—reducing both travel time and maintenance costs.
Industrial Facilities
Manufacturing plants require dependable circuit protection for motors, variable-frequency drives, robotics, and other equipment with complex starting and operating characteristics. Electronic MCCBs make it possible to coordinate protection settings precisely with these operating profiles.
Motor startup is one of the most common challenges in industrial systems. Large motors can draw six to eight times their rated current during startup, and this inrush may last several seconds. Traditional breakers often need to be oversized or replaced with motor-rated types to prevent nuisance trips. However, oversizing can compromise fault protection.
Electronic MCCBs address this issue by allowing programmable short-time delays that tolerate inrush current while maintaining rapid fault response. For example, setting a short-time delay of several seconds at a specified multiple of rated current enables motors to start smoothly while ensuring the breaker still trips within milliseconds in the event of a genuine short circuit. This balance provides both reliable equipment operation and strong protection against electrical faults.
Smart Buildings
Modern commercial buildings connect lighting, HVAC, security, and building management systems into one integrated network. Electronic MCCBs fit naturally into these smart building setups, providing both protection and useful data.
Building management systems can use power consumption data from electronic breakers to run demand-response programs, automatically reducing non-critical loads during peak pricing periods. The breakers’ communication interfaces connect directly to existing BMS platforms using standard protocols, allowing centralized monitoring and control.
By tracking actual power use on each floor, smart systems can identify occupied areas and adjust heating or cooling accordingly. This approach is more accurate than relying on occupancy sensors alone and helps reduce overall energy costs.
| Application | Key Benefit | Typical Setting Advantage |
|---|---|---|
| Data Centers | Uptime assurance | Remote monitoring prevents unplanned outages |
| Renewable Energy | Variable load handling | Programmable curves prevent nuisance trips |
| Industrial Plants | Motor protection | Precise short-time delays accommodate starting current |
| Smart Buildings | Energy management | Power data enables demand response programs |
Conclusion
As electrical systems keep getting smarter, the tools that protect them must evolve too. Electronic MCCBs remind us that even something as ordinary as a circuit breaker can become intelligent—turning protection into insight, and maintenance into a chance for continuous improvement.
