Electric systems hide risks that often go unnoticed. A slight drop in voltage may seem harmless, yet it can quietly strain machines, electronics, and processes—sometimes causing damage long before anyone notices a problem.
Just because equipment keeps running doesn’t mean the power supply is safe. Without a way to respond to these subtle drops, systems remain exposed, and the consequences—unexpected shutdowns, damaged components, or costly downtime—can quickly add up.
Undervoltage trip releases help manage this invisible threat. These devices automatically open a breaker when voltage falls too low, stopping problems before they start. By catching voltage drops early, they protect equipment, processes, and operations, turning hidden risks into manageable events and keeping systems running safely and reliably.
The Basics of Undervoltage Trip Release

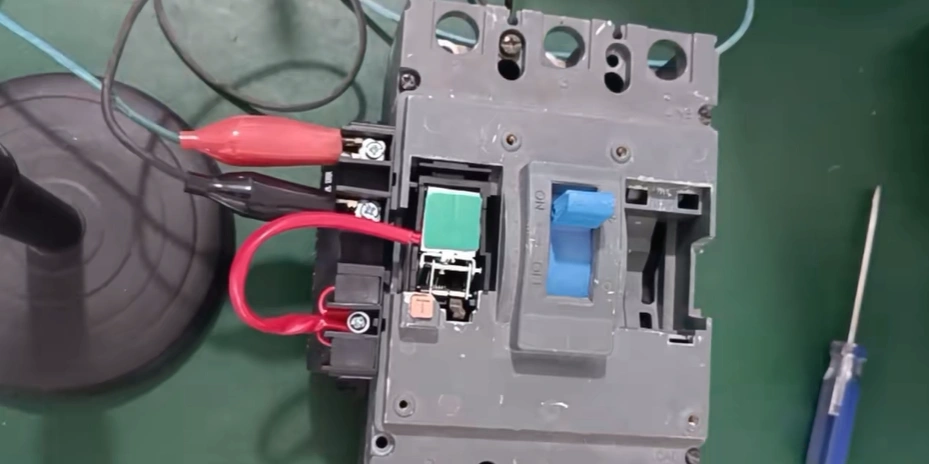

An undervoltage trip release (UVR) is a protective device built into circuit breakers that automatically trips the breaker when the supply voltage drops below a safe operating level.
Think of it as a safety net that catches your equipment before voltage problems can damage it. Unlike the overcurrent protection most people are familiar with—which trips a breaker when too much current flows—UVR, on the other hand, guards against the opposite problem—too little voltage. While less obvious, undervoltage can be just as harmful to your equipment as an overload.
How UVR Differ from Standard Protection?
Most circuit breakers include overcurrent protection. This is the feature everyone knows: too much current, and the breaker trips. But voltage problems are a different kind of threat. When voltage sags or drops, your equipment doesn’t necessarily draw more current. Instead, motors may struggle, electronic controls may behave unpredictably, and industrial processes might fail in unexpected ways.
I once visited a factory plant that faced repeated mysterious shutdowns. Their standard breakers weren’t tripping, so staff assumed the power was fine. In reality, voltage sags were causing the problems—issues their regular protection couldn’t detect. After installing breakers with undervoltage trip release, the mystery was solved. The breakers tripped whenever voltage dropped too low, preventing equipment damage and stabilizing production.
The Core Components
At its core, a UVR has two main parts: a voltage sensing element and a mechanical release mechanism. The sensing element—either a coil or electronic sensor—continuously monitors the control voltage. It’s calibrated to your system’s voltage rating, whether that’s 200–250 VAC or a specific DC range.
The second part is a spring-loaded latch that holds your breaker in the closed position. As long as the voltage stays above the threshold—typically around 70% of the rated voltage—this latch keeps everything running smoothly. But the moment voltage drops below that critical point, the latch releases and the breaker opens, isolating your load from the low-voltage power supply.
What’s clever about this design is its simplicity. There’s no complex programming—just a fast, mechanical or electromagnetic reaction. This allows your equipment to be protected almost instantly, often within a single AC cycle, whenever voltage falls below safe levels.
How Does it Work?
When I first started learning about what is UVR, the technical specs made me confused. But once you break down how these devices actually work, the logic becomes surprisingly simple. Let’s walk through the key points.
The process begins with constant voltage monitoring. The sensing coil or electronic sensor continuously checks the supply voltage against its preset voltage level. This isn’t a periodic check—it’s happening all the time. As soon as voltage begins to drop, the UVR starts responding. The crucial part is knowing the specific voltage levels at which it acts.
Voltage Thresholds That Matter
UVR operation depends on two critical voltage levels: pickup voltage and drop-out voltage.
-
Pickup voltage is usually set between 70–85% of the rated control voltage. For example, a 200 VAC coil might have a pickup voltage around 175 VAC. This is the point where the UVR activates its protective function.
-
Drop-out voltage, typically about 70% of the nominal voltage, is where the breaker actually trips.
There’s often a small gap between the pickup and drop-out voltages. This gap stops the breaker from reacting to minor fluctuations, ensuring stable operation.
Response Speed and Timing
A common question is: how fast does a UVR respond? The answer is impressively fast. For electromagnetic releases, we’re talking about operation within a single AC cycle—roughly 16–20 milliseconds, depending on your frequency. Electronic versions are even quicker but may include programmable delays to filter out very brief voltage dips.
Speed is important because voltage sags often happen suddenly. A motor starting nearby, a fault on the network, or switching equipment can cause voltage drops lasting from half a cycle to several seconds. The UVR needs to act before your equipment suffers damage.
But here’s where it gets interesting: sometimes you don’t want instant tripping because it may cause more problems than it solves. Imagine a facility where the power supply often dips for just a split second. If the UVR tripped instantly every time, the equipment would keep shutting down unnecessarily.
To prevent this, certain UVRs are designed with a short delay. They wait—usually half a second to two seconds—before taking action. If the voltage bounces back during that pause, the breaker stays closed. This way, the system avoids needless interruptions but still steps in when a voltage drop really threatens the equipment.
Why Undervoltage Protection Matters?
For a long time, most people paid close attention to overcurrent protection while undervoltage was rarely considered. But the evidence tells a different story. Damage reports and cost analyses show that undervoltage events can be devastating, both technically and financially. The reality is simple: most facilities are at risk and don’t even know it.
Voltage problems show up in different ways, but the two most common are brownouts and voltage sags. Brownouts are prolonged periods of reduced voltage, often triggered by utilities during high demand. Voltage sags are shorter dips, usually lasting from half a cycle up to a minute, and are caused by events like motor starts, transformer switching, or faults in the distribution network.
The Hidden Threat in Your Power Supply
The real danger with voltage sags is their source. Research shows that about 75% of dips originate in the medium-voltage distribution network—far beyond your facility’s control. You could have the best power quality equipment inside your plant, but if the problem starts upstream, your systems are still exposed.
These events also happen more often than many realize. A heavy motor starting in a nearby factory, a lightning strike miles away, or utility equipment switching can all send voltage disturbances through the grid and reach your equipment. Without proper protection, your systems are left vulnerable to issues you didn’t cause and can’t prevent.
Equipment at Risk
Motors are usually hit first. When voltage drops, motors try to keep their mechanical load constant by pulling more current. It feels strange, but it’s simple physics—power equals voltage times current(P = UI). So when voltage falls, current must rise to deliver the same power. That extra current quickly overheats the motor, breaks down insulation, and can lead to premature failure or even immediate burnout.
But motors aren’t the only concern. PLCs, variable frequency drives, and other electronic controls can reset, freeze, or trip during a sag. Even a short dip can stop an entire production line. The process doesn’t just pause—it often requires a complete restart sequence, wasting hours of production time.
The Real Cost of Voltage Problems
The financial bill is severe. Different industries face different levels of pain, but the pattern is the same: everyone loses money when voltage sags hit. Here’s what studies show about average costs per event:
| Industry Sector | Average Cost Per Event |
|---|---|
| Fine Chemicals | €190,000 |
| Microprocessors | €100,000 |
| Metal Processing | €35,000 |
| Textiles | €20,000 |
| Food and Beverage | €18,000 |
| Industrial (General) | US $19,594 |
Look at those numbers. A single sag in a semiconductor facility can cost six figures. Even in less sensitive industries, thousands of dollars are lost per event. And many facilities experience multiple dips each month without even realizing it—because they’re not monitoring for undervoltage and don’t have UVR protection in place to at least stop the damage.
The costs extend far beyond damaged equipment. Downtime leads to wasted materials, lost production, higher labor expenses, potential prodcut quality issues, and delayed deliveries. In some cases, an interrupted process can’t simply resume—it has to start over from scratch, wasting hours or even days of work.
When you consider that industrial processes often rely on tight tolerances and costly materials in progress, a voltage sag isn’t just inconvenient—it’s a serious financial risk. UVR protection, in that light, isn’t an optional upgrade and more like essential insurance.
Where Are They Used?
In practice, some applications naturally gain more from UVR protection. While undervoltage may not always be top of mind, including UVR can help prevent unexpected equipment issues and improve overall system reliability.
Motor Protection
Motor protection sits at the top of the list. Industrial motors, especially large ones, are expensive and don’t tolerate voltage sags well. A motor running at reduced voltage generates excess heat while delivering less torque. In the best case, it stalls and stops; in the worst case, it burns out.
Installing UVR on motor circuits allows the breaker opens before the motor can destroy itself. The motor stops safely, giving you a chance to investigate the voltage issue without dealing with a fried motor.
Critical Process Protection
Data centers are another prime example. These facilities run 24/7 with zero tolerance for unexpected equipment behavior. Whey they have backup power systems, the transition period during a voltage disturbances can still cause problems. Servers and network equipment can reset or shut down improperly if voltage drops too low. UVR ensures that if voltage falls below safe levels, equipment disconnects cleanly rather than struggling through brownout conditions.

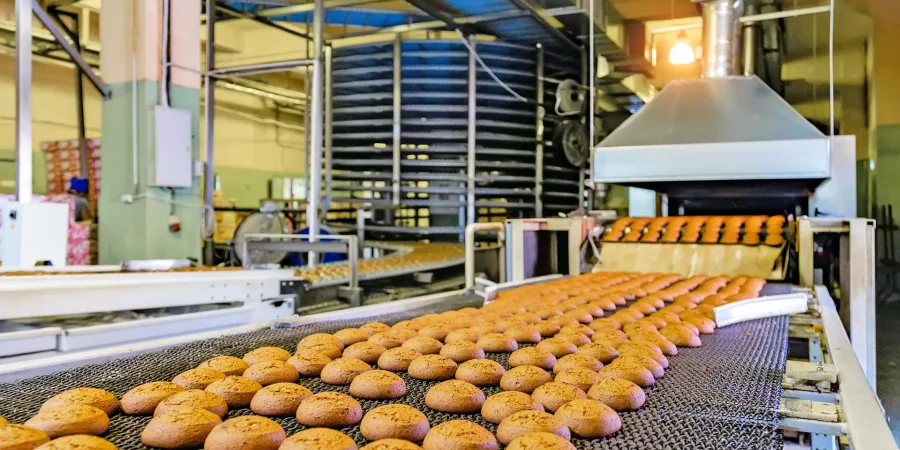

Manufacturing lines with sensitive processes also benefit a lot. Pharmaceutical production, semiconductor fabrication, food processing with precise temperature controls—these operations can’t afford voltage-related disruptions. The cost of a ruined batch are often more than the cost of a temporary shutdown, so UVR becomes a way to minimize total losses.
Medical facilities fall into this category too. Hospital equipment needs reliable power, and while critical systems have battery backup, other equipment may not. UVR helps protect diagnostic machines, laboratory equipment, and other valuable medical devices from voltage-related damage.
AC and DC System Options
Here’s something that surprises many people: UVR isn’t just for AC systems. DC voltage applications need protection too, and UVR coils come in both AC and DC versions. DC systems are common in control circuits, telecommunications, renewable energy installations, and transit systems. These applications face the same voltage sag risks as AC systems.
DC UVR devices typically cover ranges from 48–250 VDC. The operating principles are the same: monitor voltage, trip when it falls below the threshold. However, the mechanical components are designed to handle DC characteristics, since DC arcs behave differently from AC arcs.
Battery-backed DC systems particularly benefit from UVR. When a battery bank begins failing or becomes deeply discharged, voltage sags before the system dies completely. UVR can catch this condition early, triggering alarms and protective shutdowns before equipment suffers damage.
Conclusion
Even small drops in voltage can quietly cause big problems. Undervoltage protection reminds us that unseen forces, like tiny power dips, can disrupt machines, processes, and work. It’s a simple idea that can save time, money, and stress if we pay attention.
