Circuit breakers aren’t just standalone devices—they often come with a range of attachments that expand their capabilities and improve safety. Among these, one of the most common and practical is the shunt trip, which allows the breaker to be tripped remotely, adding a layer of control beyond standard overload protection.
Unlike ordinary breakers that respond only to internal issues like overcurrent or short circuits, a shunt trip can be triggered by external signals, such as fire alarms, emergency stop buttons, or building automation systems. This makes it an essential tool in environments where fast, coordinated responses can prevent accidents and protect people.
Understanding how shunt trips operate, their types, and how they integrate with other safety systems empowers electricians, engineers, and facility managers to design smarter, more responsive electrical setups. It’s a relatively small device, but its impact on safety is significant.
Understanding Shunt Trip Basics
Shunt trip breakers often cause confusion. Even experienced electricians sometimes mistake them for standard breakers or other protective devices. The way I explain it to people is simple: a shunt trip is like giving a circuit breaker a remote control. Instead of waiting for an overload to flip the switch, you can shut it down from somewhere else.
A shunt trip is an add-on device that fits inside a circuit breaker. When an external signal energizes its coil, it forces the breaker to trip. Think of it as a second trigger that works alongside the breaker’s built-in overcurrent protection. A standard breaker already monitors current and trips when there’s overload or a short circuit. The shunt trip adds another layer—it responds to outside commands, not just electrical conditions inside the circuit.
What Makes Shunt Trips Different?
The big difference is what causes the breaker to trip.
-
A standard breaker reacts to internal problems: too much current, a ground fault, or someone flipping the handle.
-
A shunt trip breaker reacts to external signals.
External signals can come from many sources. For instance, a fire alarm panel might send a voltage pulse, an emergency stop button could trigger it, or a building management system might activate it based on sensor readings. In each case, the shunt trip allows the breaker to react even when there’s no electrical fault in the circuit. This ability to respond to commands—rather than only to internal problems—makes shunt trips especially useful in facilities where multiple systems must shut down together for safety.
So how does it work? The setup is simple. Alongside the normal thermal-magnetic trip mechanism, the breaker has a coil. When the coil receives the right voltage, it creates a magnetic field that pulls a plunger and releases the breaker’s latch. The contacts open, the circuit breaks, and power shuts off—usually within milliseconds. That speed is crucial in emergencies.
| Feature | Standard Circuit Breaker | Shunt Trip Circuit Breaker |
|---|---|---|
| Tripping Mechanism | Overcurrent, short circuit, manual | Overcurrent + external signal |
| Control Method | Internal conditions only | Internal + remote control |
| Response Trigger | Electrical fault or manual lever | Fault, manual, or external signal |
| Typical Use | Routine circuit protection | Emergency shutdowns, system coordination |
| Reset Method | Manual (after cooling) | Manual after both fault and signal clear |
Two Common Configurations
Shunt trips generally come in two types, and knowing which one you have is important for both installation and maintenance:
-
Manual shunt trips: These require someone to reset the breaker after it trips. They’re a good fit for smaller spaces—like retail stores or small factories—where staff can reach the panel quickly. In other words, manual shunt trips rely on human action to trigger and reset the breaker.
-
Automatic or pulse-duty shunt trips: Pulse-duty shunt trips are built differently from manual types. Instead of holding voltage on the coil for a long time, they only need a very short burst of power—usually less than a second. That brief pulse is enough to trigger the breaker, and it also prevents the coil from overheating. After the pulse, the coil switches off, but the breaker stays open until someone resets it manually. This design makes them ideal for systems that can send signals automatically—such as fire alarms or building automation systems—allowing the breaker to be tripped remotely without human intervention, while staying off until it’s safe to restore.
This difference matters when wiring. Pulse-duty models need momentary signals (like a relay that switches briefly). Manual types can handle longer voltage, but you still need to check the coil’s rating. Miswiring is a common mistake—treating a pulse-duty coil like it can take continuous power will burn it out fast.
How Shunt Trip Mechanisms Work?
The beauty of a shunt trip mechanism lies in its simplicity. At its core, it’s just an electromagnet with a very specific job. You could compare it to a doorbell: press the button, electricity flows through a coil, the magnetic field pulls a striker, and you get a result.
The Activation Sequence
Under normal conditions, the shunt trip coil does nothing. It sits idle, waiting for a command. Meanwhile, the circuit breaker operates like any other breaker—watching current flow, ready to trip if there’s an overload or short circuit. Installing a shunt trip doesn’t interfere with those standard protective functions. It simply adds another way to trip the breaker.
The sequence begins when a control system decides power needs to shut down right away. That signal could come from a smoke detector, an emergency stop button, or a temperature sensor. Whatever the trigger, it activates a relay or switch inside the control panel—this relay doesn’t live in the breaker itself but in the fire alarm system, building automation panel, or other control cabinet. When the relay closes, it sends the proper voltage to the shunt trip coil. The voltage must match the coil rating—too low and nothing happens, too high and you risk damage.
When the coil receives voltage, electromagnetic action releases the breaker’s latch, opening the contacts and interrupting the circuit—typically within 20 to 50 milliseconds.
The action is extremely fast. From the moment the signal reaches the coil, the breaker typically opens in 20 to 50 milliseconds. For emergencies like fires or equipment failures, those milliseconds matter. To put it in perspective, a human reaching for a breaker handle takes about 200 to 300 milliseconds—even if they’re standing right there. Automation makes the response almost instant.
Integration with Control Systems
The real power of shunt trips comes from integration with other safety systems. In a fire alarm system, the alarm control panel has relay outputs specifically designed to interface with shunt trips. When the system goes into alarm, these relays activate, sending control voltage to one or more breakers. The sequence is coordinated—maybe the fire panel trips non-essential loads first, keeping emergency lighting and life safety systems powered while killing everything else. Or maybe it shuts down specific equipment that could worsen the situation, like HVAC systems that might spread smoke.

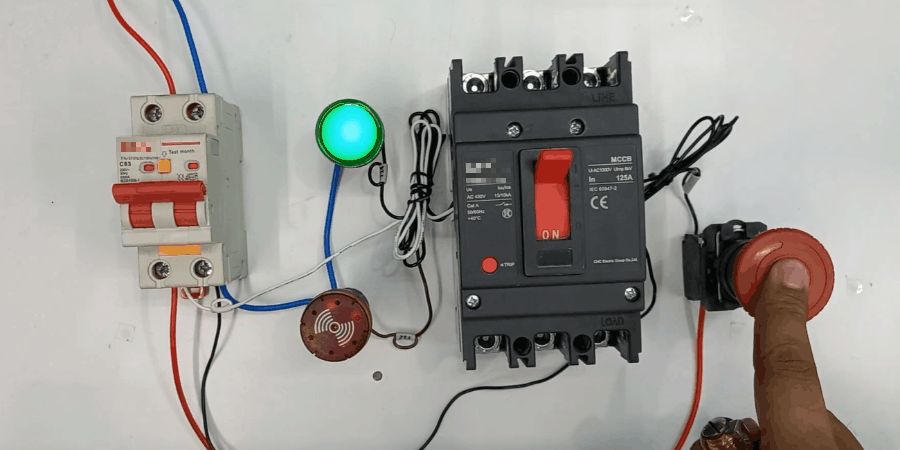

In some buildings, emergency power-off (EPO) buttons are installed near exits. When pressed, these buttons send signals through the fire alarm panel to multiple shunt trip breakers. To prevent the control power supply from being overloaded, such systems often use pulse-duty shunt trips wired through a relay logic circuit. Each breaker coil receives a short pulse in sequence rather than energizing all coils at once. This design allows a single button press to shut down an entire floor safely and in an orderly manner.
Auxiliary Contacts and Feedback

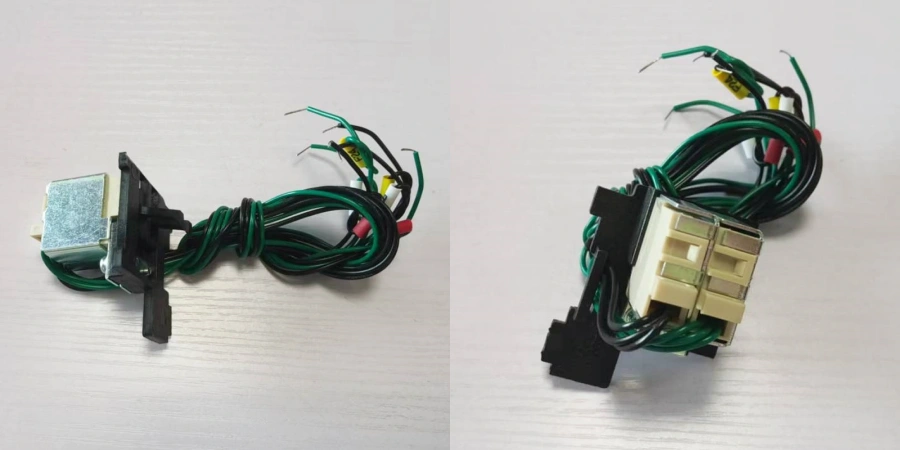

Many breakers with shunt trips also include auxiliary contacts—small switches that change state when the breaker trips. These contacts provide feedback to control systems, confirming that the breaker actually opened. In critical setups, this feedback is essential. If a breaker fails to trip as expected, the fire panel or building automation system can alert operators immediately.
The feedback also enables smarter control strategies. For example, a building management system might trip a breaker, wait for confirmation, then log the event or notify staff. With a motor operator attached, it could even re-close the breaker remotely once conditions are safe. In this way, the breaker becomes part of a communication device, not just a protective device.
Where Are Shunt Trip Breakers Used?
Over the years, I’ve come across shunt trip breakers in a wide range of facilities. They’re not rare—once you know what to look for, you’ll notice them in restaurants, data centers, and more. Despite the variety of applications, they all rely on the same core principle: enabling remote, coordinated shutdowns when certain conditions require it.
Fire Protection Systems
One of the most common uses of shunt trips is in fire protection. Both the National Fire Protection Association and local building codes often require them in specific situations. The idea is simple: when a fire breaks out, you want to cut power to some circuits while keeping critical life-safety systems running. Shunt trips make this possible without anyone having to enter a dangerous area to flip breakers by hand.
In a typical setup, the fire alarm control panel sends signals to shunt trip relays. These relays connect to the coils on selected breakers throughout the building. Programming determines which breakers respond to which triggers. For example, a smoke detector in a kitchen might trip only the cooking equipment circuit, while a detector in an electrical room could shut down non-essential loads. A water flow switch in the sprinkler system might activate a different set of breakers.
I once visited a hotel where the fire alarm system controlled shunt trips for every guest floor. If smoke was detected on the third floor, the breakers for that floor’s convenience outlets would trip, shutting off potential ignition sources like hair dryers and phone chargers. Meanwhile, emergency lighting, exit signs, and elevator power remained active, and corridor lighting stayed on. Only the circuits posing additional risk were turned off. Achieving this level of selective control would be nearly impossible without shunt trips—you can’t rely on staff to manually operate the correct breakers during an emergency.
The wiring for these systems follows strict safety codes. Fire alarm circuits use conductors rated for fire conditions, often with red jackets for easy identification. Control voltage paths run in separate conduits to maintain circuit integrity during a fire. Supervision circuits monitor the shunt trip wiring for breaks or shorts, alerting the system to potential issues before they become actual failures. While this adds complexity, it’s essential for ensuring life-safety systems operate correctly when needed.
Emergency Power-Off Systems
Data centers, labs, and industrial facilities often rely on emergency power-off (EPO) systems, which make extensive use of shunt trips. Unlike fire alarm setups that selectively cut power to certain circuits, EPO systems are designed to give people a quick way to shut down all power in a specific area when something goes wrong.
For example, a cooling system failure could put servers at risk of overheating. A chemical spill might require immediate de-energization to keep staff safe. Or someone could be experiencing an electric shock, and bystanders need to cut the power instantly. In all these situations, EPO buttons make it possible to react fast and prevent further harm.

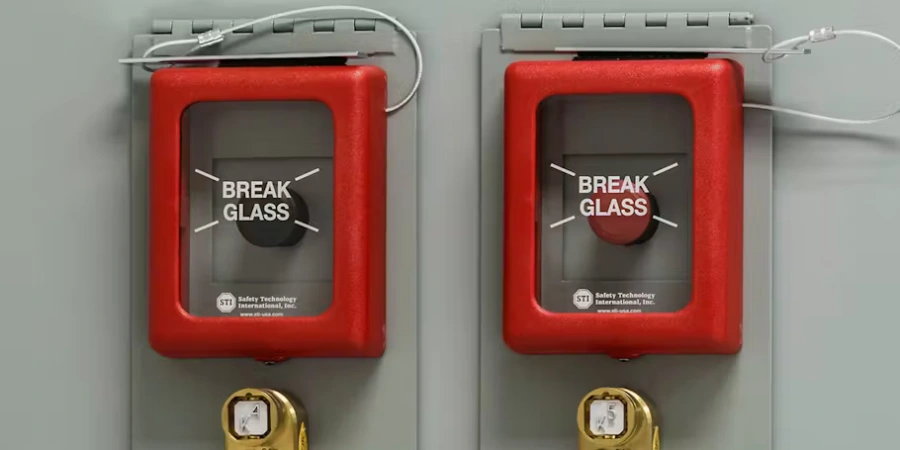

The typical setup puts large red mushroom-head buttons near exit doors and along major pathways. Breaking the glass cover or hitting the button triggers the EPO sequence. Behind the scenes, the EPO circuit energizes shunt trip coils on main distribution breakers. Everything downstream goes dark except possibly emergency lighting on a separate feed. The design assumes you’d rather have an entire facility down than risk life safety or equipment damage.
Commercial Kitchen Applications
Commercial kitchens face unique fire hazards, and fire suppression systems in these environments often work hand-in-hand with shunt trips. When a grease fire ignites in a fryer or on a griddle, the suppression system releases chemicals over the cooking surfaces. At the same time, shunt trips cut power to the affected equipment. This prevents electric or gas systems from continuing to feed the fire while chemicals do their job.
The system usually works mechanically. Small metal links, called fusible links, are installed above the cooking equipment. When the temperature gets dangerously high—like during a grease fire—these links melt. This automatically releases the fire suppression chemicals and closes a switch that cuts power to the cooking equipment via the shunt trip. Everything happens on its own, without anyone having to touch a breaker. The kitchen staff just needs to evacuate and call the fire department.
What often surprises people is how precisely these systems are zoned. A large kitchen may have three or four suppression zones, each with its own shunt trip breaker. A fire over the woks trips only that section, leaving ovens and refrigeration running. A fire at the char-broiler station affects only those circuits. This zoning minimizes unnecessary food loss and equipment downtime while still providing full protection to the area in danger.
Specialized Industrial Uses
Shunt trips also appear in specialized industrial applications. For example, some elevator systems use them for emergency disconnects, though requirements vary by jurisdiction and local elevator codes. CNC machines and large industrial equipment often tie shunt trips to safety circuits—opening a guard door or triggering a safety light curtain shuts down power immediately.
Renewable energy installations also rely on shunt trips for rapid disconnects, particularly in solar arrays where fast, reliable shutdowns are needed for maintenance or emergencies. High-voltage testing facilities may use shunt trips to protect operators. Across all these scenarios, the common requirement is the same: fast, reliable, remotely-activated power disconnection when conditions demand it.
While the applications are different, the underlying purpose is consistent: when something goes wrong, power must be cut quickly, safely, and often in coordination with other systems. Shunt trips provide that capability in a standardized package that integrates seamlessly with the circuit breakers facilities already use and maintain.
Conclusion
Even the most advanced equipment relies on human foresight. Shunt trip breakers remind us that safety isn’t just built into devices—it comes from anticipating risks, designing systems to act before disaster strikes, and taking responsibility for protecting people and property.
Beyond technology, they highlight a mindset: proactive thinking saves people. By considering “what could go wrong” and planning systems that respond automatically, we create environments where safety becomes seamless, not an afterthought. It’s a lesson that applies to engineering—and to daily life.
