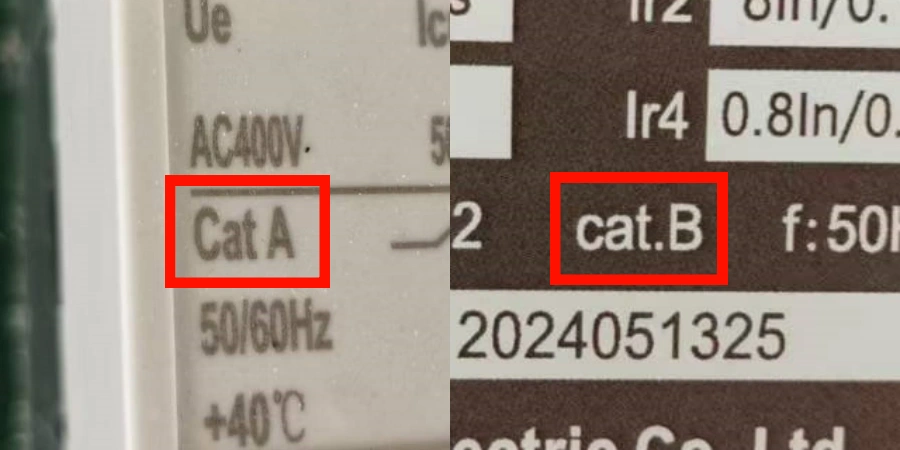

I remember the first time I noticed “Cat. A” stamped on the nameplate of a molded-case circuit breaker. At the time, I had no idea what it meant. It seemed like just another technical label, and I assumed all breakers basically worked the same way.
Curious, I spent some time reading the manuals, checking the standards, and discussing with more experienced colleagues. Slowly, I realized that the category indicates how a breaker behaves during faults—whether it trips instantly or coordinates with other breakers to isolate only the affected section.
Learning this changed the way I think about breakers. A small label like “Cat. A” actually reflects design decisions that impact system reliability, equipment protection, and operational continuity. It made me want to understand more about how these devices work together in real-world systems.
Understanding Utilization Categories
you might ask, why would a simple device like a circuit breaker need different categories? But once you look closer, the reason becomes clear.
According to the IEC 60947-2 standard, utilization categories classify low-voltage switchgear based on how they coordinate during short-circuit conditions. In simple terms, it’s a way of sorting breakers so we know how each type behaves when something goes wrong in the system.
The Foundation of Circuit Breaker Classification
When I first started, I assumed all circuit breakers were basically the same—they trip, or they don’t. Pretty straightforward, right? But I quickly learned that modern electrical systems are more complex than that. We don’t just need breakers that react; we need breakers that work together intelligently.
The classification hinges on two key ideas: short-time delay and short-time withstand current rating. These terms may sound technical, but they explain how breakers behave under fault conditions. Here’s the difference:
-
Category A breakers provide instant protection. They act alone, without worrying about what the other breakers are doing.
-
Category B breakers are team players. They’re designed to coordinate with other breakers, allowing the system to isolate only the faulty section.
This distinction is crucial for maintaining selectivity—the ability to keep the rest of your facility running while shutting down only the part affected by a fault. In many facilities, even a small fault can shut down an entire production line if the breakers are not properly coordinated. A clear understanding of utilization categories helps reduce the risk of these costly interruptions.
A Simple Way to Think About It
The concept sounds more complicated than it really is. Once you break it down, it’s easy to remember:
-
Category A breakers are like a friend who always jumps in first during a conversation—they react immediately.
-
Category B breakers are like skilled negotiators—they pause, assess the situation, and let others act if it makes sense.
Here’s a quick comparison
| Characteristic | Category A | Category B |
|---|---|---|
| Short-time delay | No intentional delay | Adjustable delay available |
| Coordination | Immediate response | Selective coordination |
| Main focus | Fast protection | System reliability |
Category A Circuit Breakers
Category A breakers have one clear job: act fast to protect the circuit the moment a fault occurs. They don’t include intentional short-time delays, nor do they carry a short-time withstand current rating. In practice, this means they interrupt the current flow immediately once they detect a short circuit.
No Intentional Short-Time Delay
This lack of delay defines their entire character. When a fault current shows up, Category A breakers don’t stop to check if a downstream breaker might handle it better. Instead, they trip instantly based on their protection settings—usually within just a few cycles.
This makes them ideal in situations where safety and immediate protection matter more than coordination. For instance, in residential systems, you want a breaker to trip right away if someone drives a nail through a hidden wire. You’re not worried about how it coordinates with other breakers—you just want the circuit off before anyone gets hurt.
But in larger and more complex systems, this fast response can sometimes create problems. A minor fault in one motor control circuit, for example, may trip not only the local breaker but also upstream breakers. The result is a wider outage than necessary, since multiple Category A breakers—each acting independently—attempt to clear the same fault at the same time.
Current-Limiting Protection Characteristics
Another important trait of Category A breakers is their current-limiting capability. In other words, they don’t just cut off the current—they also cap how high the fault current can climb before interruption.
This feature comes from their internal design, which quickly introduces resistance into the fault path. By doing so, they reduce the peak let-through current and minimize stress on other equipment. This is especially valuable for sensitive electronics, which can be damaged even by brief spikes in fault current.
| Feature | Category A Behavior | System Impact |
|---|---|---|
| Response time | Immediate (few cycles) | Fast fault clearing |
| Current limiting | Yes | Reduced equipment stress |
| Coordination | Limited | Potential for cascading trips |
Common Uses in MCCBs and MCBs

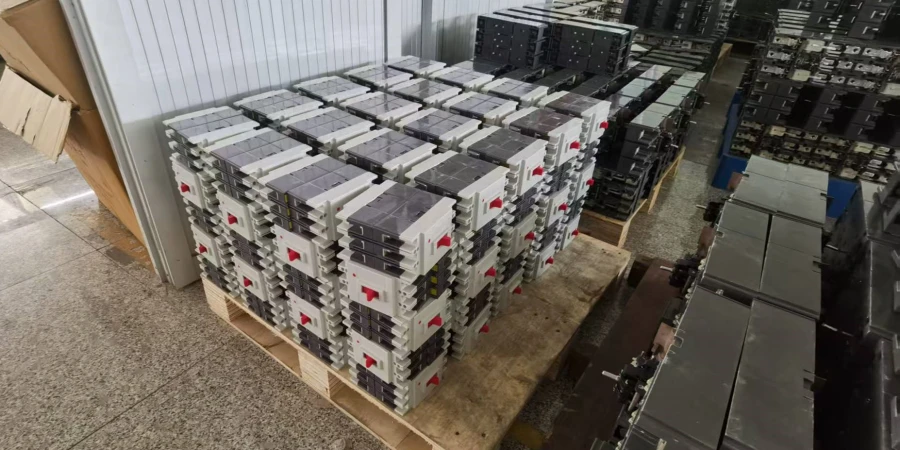

In practice, most mccbs and mcbs fall into Category A. They’re the workhorses you’ll see in commercial buildings, industrial panels, and residential distribution boards.
Why are they so common? Mainly because they’re simple and cost-effective. Adding short-time delay functions and withstand ratings makes breakers more expensive and more complex. For smaller loads or non-critical processes, that extra coordination just isn’t worth the price.
Category B Circuit Breakers
Category B breakers take a more refined approach to electrical protection. Unlike Category A breakers, which react instantly, Category B devices are built for coordination.
They include two critical features: an adjustable short-time delay and a short-time withstand current rating. Together, these allow them to “think” before tripping and work in harmony with other protection devices.
Adjustable Short-Time Delay
The adjustable short-time delay is what truly sets Category B breakers apart. Depending on the model, this delay can be tuned from instantaneous up to several hundred milliseconds. Why does that matter? Because it gives downstream devices the first chance to respond when a fault happens in their area.
Think of it like a traffic light system: when a fault occurs, the upstream breaker doesn’t immediately slam on the brakes. Instead, the delay acts like a yellow light—pausing just long enough for the downstream breaker (the one with the green light) to handle the problem first. Only if the downstream breaker fails does the upstream Category B breaker finally step in.
This flexibility is powerful. During testing, many engineers fine-tune these delays to achieve the perfect balance between fast protection and system selectivity. The result is a protection system that’s both reliable and adaptable.
Short-Time Withstand Current (Icw)
Of course, waiting to trip isn’t enough—the breaker also needs to survive while it holds off. That’s why Category B devices are rated for short-time withstand current (Icw). This rating specifies how much fault current the breaker can carry, and for how long, without failing.(What Are Icw and Icm in Circuit Breakers?)
For example, a breaker rated at 35 kA at 500 V DC can withstand 35,000 amperes for a set duration (such as 0.1, 0.25, or 1 second). That resilience requires a stronger build—reinforced contacts, better arc management, and improved thermal handling. It’s also why Category B breakers are usually larger, costlier, and reserved for more critical applications.
Non-Current-Limiting Behavior
Another distinction is how these breakers handle fault currents during the delay. While a Category A breaker limits current immediately, a Category B breaker doesn’t. During its short-time delay, it allows the full fault current to flow. This is intentional—if the upstream breaker reduced the fault current right away, downstream devices might not detect the problem and fail to trip as designed.
Once the delay period ends, however, the Category B breaker can act just like a Category A device—limiting current and clearing the fault. The difference lies in the sequence:
-
First, give downstream devices a chance to respond.
-
If they don’t, step in and clear the fault with full protection.
When to Use Each Category?
Choosing between Category A and Category B isn’t only about technical specs—it’s about understanding your system’s priorities and operational needs.
Choosing the appropriate category can influence how well a system operates, sometimes requiring fine-tuning and sometimes fitting seamlessly from the start.
Category A for Basic Branch Protection
Category A breakers are ideal when simplicity and cost-effectiveness are the main priorities. They work best in systems where coordination with other breakers isn’t critical.
-
Residential applications: Category A breakers are almost always the right choice. Homeowners want immediate protection, and they can easily reset a tripped breaker. Coordinated operation isn’t necessary, and cost savings matter, especially when installing hundreds of breakers across a development.
-
Small commercial buildings: Office spaces, retail stores, and small warehouses often follow the same logic. Individual circuit outages usually don’t impact critical operations, and maintenance staff can quickly identify and resolve issues.
-
Motor protection: When each motor has dedicated protection, Category A breakers ensure immediate response to faults, protecting equipment effectively. Coordination with upstream breakers is often handled by contactors or overload relays.
The general rule is load criticality. Category A works well for non-critical loads, such as lighting circuits, convenience outlets, and general-purpose equipment—systems that can tolerate brief interruptions without major operational or financial consequences.
It’s common to combine two kind of categories within the same facility. Critical process equipment can use Category B coordination, while general facility loads rely on Category A protection—a practical balance between reliability and cost.
| Application Type | Recommended Category | Key Considerations |
|---|---|---|
| Residential circuits | Category A | Cost, simplicity |
| Office buildings | Category A | Non-critical loads |
| Motor protection | Category A | Dedicated protection |
| General lighting | Category A | Acceptable outages |
Category B: When Selective Coordination Matters
Category B breakers are essential when maintaining continuity of service is critical. They are designed for situations involving sensitive equipment, important processes, or regulatory requirements for selective coordination.
-
Hospitals: Life-safety systems, operating rooms, and critical care areas often require Category B coordination. A fault in one patient room should never shut down an entire wing.
-
Data centers: Redundant power systems rely on proper coordination. Without Category B breakers, simultaneous trips of primary and backup systems can lead to total facility outages.
Industrial and Manufacturing Applications
Manufacturing facilities often need Category B coordination to ensure production continuity. Even minor faults in control circuits can temporarily stop production, which can make the additional investment in Category B breakers cost-effective over time.
Key considerations include:
-
Critical processes: Continuous operations, like chemical production or steel manufacturing, justify Category B due to high restart costs and product loss.
-
Personnel safety: Maintenance staff can work on isolated sections with confidence, improving both safety and efficiency.
Sub-Distribution Switchboard Applications
Sub-distribution switchboards are another common use case for Category B breakers. These panels feed multiple downstream loads, so coordination is critical. When a downstream fault occurs, only the affected zone should shut down, leaving the rest of the system operational.
Category B breakers in these panels can prevent facility-wide outages, keeping emergency lighting, fire alarms, and other critical infrastructure running. At this level, the incremental cost of Category B functionality is usually minor compared to the cost of downtime.
| System Level | Typical Category | Coordination Benefit |
|---|---|---|
| Main distribution | Category B | Facility-wide protection |
| Sub-distribution | Category B | Zone isolation |
| Branch circuits | Category A | Local protection |
| Equipment protection | Category A | Immediate response |
Conclusion
Circuit breakers may seem simple, but their design reflects deeper trade-offs between speed, coordination, and system resilience—reminding us that even small components shape the reliability of complex systems.
