When it comes to buying MCCBs, one question always comes up: which type should I choose? During the time talking with the clients, I’ve learned that this decision goes beyond just picking a breaker—it affects safety, reliability, and long-term operations.
Some differences between thermal-magnetic and electronic MCCBs are obvious, like price and installation, while others, such as response accuracy or monitoring capabilities, only become clear once you start working with them. As a factory that produces both types from the mold up, knowing these nuances helps me communicate more effectively with clients, explain the trade-offs, and guide them toward the solution that fits their needs best.
Even in straightforward applications, the right MCCB choice can save time, reduce maintenance, and improve energy efficiency. Understanding these factors early on makes a big difference, whether for a small commercial setup or a large industrial plant.
What Are MCCBs and Why Do They Matter?
MCCB stands for Molded Case Circuit Breaker, and these devices handle the heavy lifting in electrical systems—typically anywhere from 100 amps to 2,500 amps. Think of them as the gatekeepers of your electrical infrastructure. When something goes wrong, they’re the ones that jump into action to prevent damage, fire, or worse. But here’s where it gets interesting: not all MCCBs work the same way.

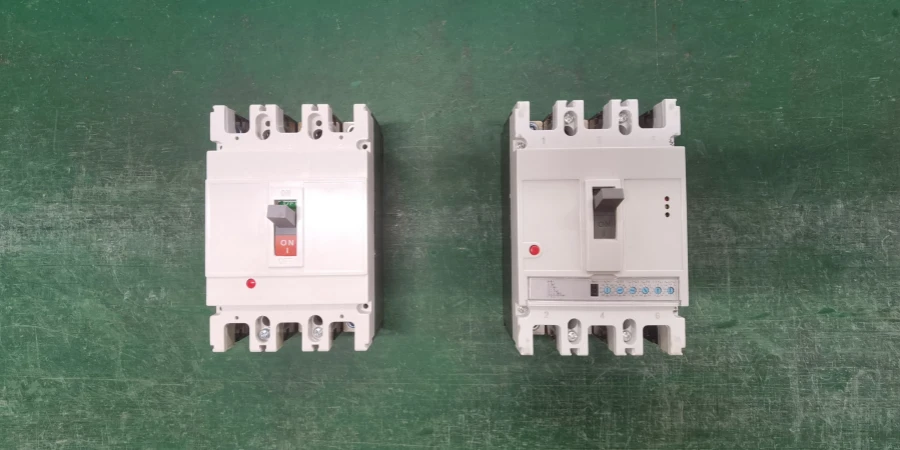

Two Basic Different Approaches
When it comes to MCCBs, the electrical protection world splits into two main camps: thermal-magnetic and electronic. Each type relies on a completely different way of detecting and responding to faults.

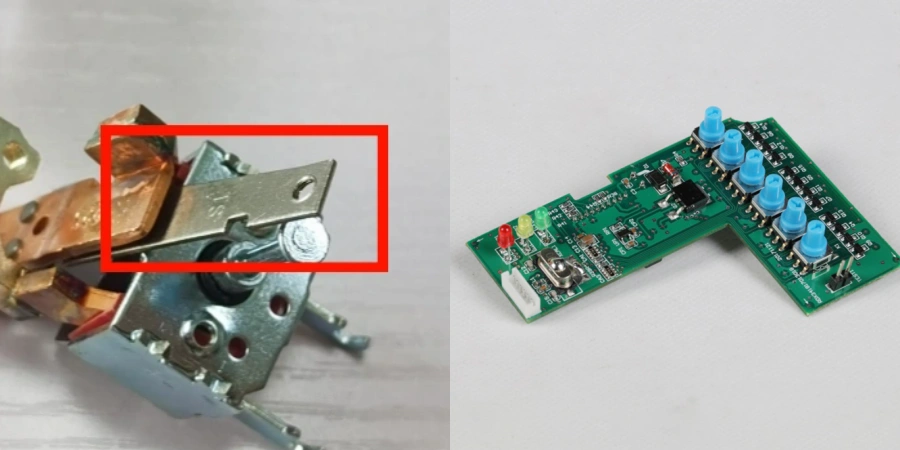

A thermal-magnetic breaker uses physical components—a bimetallic strip that bends when it heats up and an electromagnet that reacts instantly to current spikes. Electronic breakers, by contrast, use microprocessors and current transformers to make digital, data-driven decisions about when to trip.
This isn’t just a technical curiosity. The choice between these two technologies affects everything from your initial budget to how you’ll manage your facility ten years down the line. A thermal-magnetic breaker might cost you less upfront, but it can’t tell you anything about what’s happening in your system. An electronic breaker costs way more—we’re talking maybe two to five times the price—but it can communicate with your building management system, log every event, and give you warnings before something actually fails.
Why This Decision Matters More Than Ever?
The electrical world is evolving fast. Data centers now require millisecond-level coordination between breakers, manufacturing plants rely on detailed energy data to stay efficient, and even traditional facilities expect remote monitoring and diagnostics. In this environment, your choice of breaker isn’t just a technical detail—it determines whether your system can keep up with modern demands or fall behind.
Choosing the right breaker isn’t about picking the newest or most expensive option. It’s about matching the technology to your needs—both now and in the future. Some applications work perfectly fine with basic protection, while others depend on the advanced monitoring and control that only electronic breakers can provide. Making that distinction early can save significant time, cost, and disruption later on.
Side-by-Side Comparison: Features, Costs, and Performance
Before diving into the detailed feature-by-feature comparison, it’s important to know that not all differences between thermal-magnetic and electronic MCCBs are immediately obvious. Some impact day-to-day operations, while others affect long-term planning, maintenance, and even your facility’s energy efficiency.
The Performance Differences That Actually Matter
Performance is where the real distinctions show up. Trip accuracy, for example, decides how precisely a breaker responds under overload. Thermal-magnetic units typically trip within 20% of their rated current—so a 100-amp breaker might trip anywhere between 80 and 120 amps.
Electronic breakers narrow that window to about 5–10%, tripping between 95 and 105 amps. For general situations, that margin isn’t a big deal. But when you’re coordinating multiple breakers or protecting sensitive equipment, that accuracy can make or break reliability.
Response time is another key factor. The thermal element in a thermal-magnetic breaker reacts over seconds or even minutes, depending on the overload’s severity. Its magnetic part, however, responds in milliseconds to short circuits. Electronic breakers take this further by letting you program response time—you can fine-tune how quickly the breaker reacts to different fault types. That flexibility becomes important when you are managing complex systems with multiple coordination layers.
| Feature | Thermal-Magnetic MCCB | Electronic MCCB |
|---|---|---|
| Trip Accuracy | ±20% | ±5% to ±10% |
| Adjustable Settings | Fixed per model | Fully programmable (pickup, curve, ground-fault) |
| Monitoring & Reporting | None | Real-time current, event logging, energy data |
| Communication Protocols | None | Ethernet, Modbus, Profibus |
| Response Time | Thermal: seconds to minutes Magnetic: milliseconds |
Fully configurable for all fault types |
| Required Power Supply | None (self-powered) | 24V DC auxiliary or internal battery |
The Cost Reality
Now, let’s talk money—because that’s often where decisions start. Electronic MCCBs cost roughly two to five times more than thermal-magnetic versions. A single breaker might jump from $200 to $800. For a panel with twenty breakers, that’s $4,000 versus potentially $16,000 just for the breakers themselves.
However, it’s important to say this clearly: in many low-end or simple projects, electronic MCCBs are simply overkill. If your application has stable loads, no coordination challenges, no requirement for monitoring, and no maintenance team trained to use the data, then the extra cost of an electronic breaker does not translate into real value. You are paying for intelligence that will never be used.
In these cases, thermal-magnetic MCCBs are not a “compromise” — they are the correct engineering choice. They deliver reliable protection at a fraction of the cost, with fewer failure points and virtually no configuration risk.
That said, thermal-magnetic breakers are still the main choice wherever simplicity, robustness, and predictability matter more than data. I’ve seen well-selected thermal-magnetic MCCBs operate flawlessly for ten years or more, protecting systems without a single nuisance trip or “missing” feature—because none were needed in the first place.
The decision is not about old versus new technology. It is about whether your priority is proven, low-risk protection at the lowest total cost, or advanced visibility and control that only deliver value when they are actually used.
💡 Pro Tip for Manufacturers and Distributors:
If you are looking to balance high performance with cost-efficiency, you don’t always have to compromise on the breaker type. We offer MCCB SKD solutions to our B2B partners.
By importing components and assembling locally, you can significantly reduce tariff costs and gain more control over your profit margins, whether you choose thermal-magnetic or electronic units.
Installation and Operational Differences
Installation is another area where the two differ. Thermal-magnetic breakers are straightforward—mount, connect, check, done. Commissioning takes minutes, and maintenance is limited to visual checks and mechanical tests.
Electronic breakers, by contrast, need more attention. Once installed, you must configure trip settings through software or onboard menus. That means understanding your load profile, coordination strategy, and protection goals. You’ll also need to document settings, perform firmware updates, and sometimes verify calibration annually.
These extra complexity isn’t necessarily a drawback—they just need to be planned for. You’ll need people who know how to configure these devices correctly, clear procedures for backing up and restoring settings, and a plan for cybersecurity if the breakers are networked. None of this is too difficult to handle, but it’s a set of real considerations that simpler thermal-magnetic breakers simply don’t require.
There is another reality that is often overlooked: a poorly configured electronic MCCB can be more dangerous than a correctly selected thermal-magnetic breaker.
Incorrect pickup settings, improper delay times, or misunderstood coordination curves can result in nuisance tripping, failed selective coordination, or—worse—protection that does not operate when it should. Unlike thermal-magnetic breakers, electronic units do not “fail safely” if configured incorrectly.
This is why electronic MCCBs should never be treated as plug-and-play devices. Without proper engineering, testing, and documentation, their added intelligence becomes a liability rather than an advantage.
Application Alignment
So where does each type make sense?
Thermal-magnetic MCCBs are ideal for residential, light commercial, and basic industrial applications—places where loads are predictable and simplicity is key. They’re the dependable, no-fuss option when you just need solid protection without data or remote access.
Electronic MCCBs belong in data centers, critical manufacturing plants, and energy-intensive facilities—anywhere downtime is expensive or detailed monitoring is required. Their precision and intelligence make them essential for predictive maintenance, energy optimization, and compliance with modern operational standards.
| Application Type | Recommended Choice | Why |
|---|---|---|
| Residential, Small Commercial | Thermal-Magnetic | Cost-effective, simple, reliable |
| Standard Industrial | Thermal-Magnetic | Adequate protection, minimal maintenance |
| Data Centers | Electronic | Precision coordination, remote monitoring |
| Critical Manufacturing | Electronic | Pre-fault alerts, detailed diagnostics |
| Energy-Intensive Facilities | Electronic | Load analysis, efficiency optimization |
| Variable Load Applications | Electronic | Adjustable settings for dynamic conditions |
The overall trend is clear: as prices drop and digital expectations rise, electronic breakers are gaining ground. Even so, thermal-magnetic units are still very much in use—they’re cost-effective, proven, and perfectly suited to many environments. The key is being honest about what your operation truly needs, not just what sounds impressive on a spec sheet.
Which Type Should You Choose?
This is where theory meets reality—and where I’ve seen the most confusion over the years. Technical specs are one thing, but making the right decision means looking at your actual situation. You have to think not just about what your equipment needs today, but where your facility is headed and what your organization values most.
Start With Your Load Profile
The first question I ask is simple: how consistent are your loads? I mean, If you’re running a residential building, a small warehouse with predictable equipment, or a manufacturing line that operates the same way every day, thermal-magnetic breakers likely give you everything you need. The loads are steady, the protection requirements are straightforward, and there’s no reason to pay for features you won’t use.
But if your loads vary significantly—maybe you have processes with high startup currents, equipment that cycles on and off throughout the day, or plans to add new machinery in the future—electronic breakers offer real advantages. You can adjust protection settings without replacing hardware. You can accommodate different load profiles at different times. You can fine-tune protection as your operation grows.
Think About Coordination Requirements

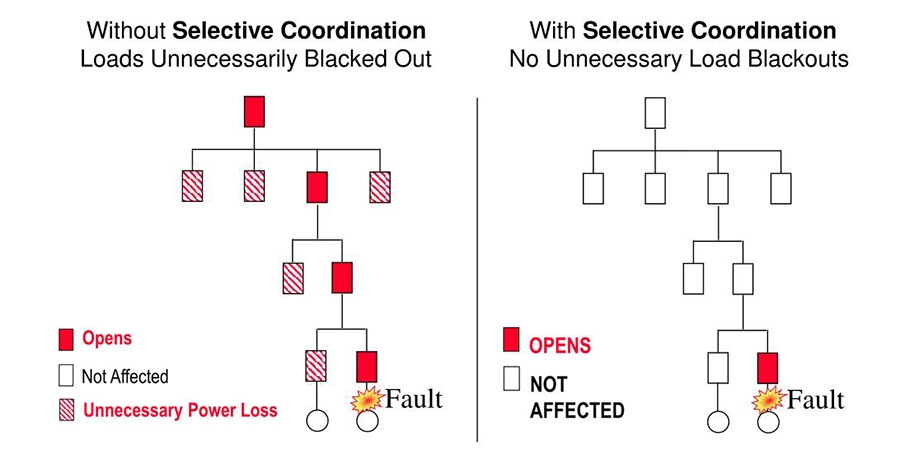

Now let’s consider coordination. Imagine a main breaker feeding several branch breakers. When a fault occurs on one branch, you want only that branch to trip—not the main. This is called selective coordination, and it’s much easier to achieve with electronic breakers because you can fine-tune their trip curves.
With thermal-magnetic breakers, coordination depends on selecting the right combination of breaker sizes and types from the manufacturer’s published tables. You’re limited to what’s been tested. Electronic breakers let you program custom curves, which is invaluable in complex, multi-tier systems where power loss beyond the faulted circuit simply isn’t acceptable.
Consider Your Visibility Needs
Ask yourself: do you need to see what’s happening electrically? Can you tell how much energy a process used last month? When a breaker trips, do you need a detailed event log—or is resetting it and calling maintenance good enough?
For many facilities, the answer is no. When the breaker trips, you reset it, and if it trips again, you call an electrician to check. That’s perfectly fine for non-critical applications. Thermal-magnetic breakers handle this well and save your budget.
But today, data is no longer optional—it’s essential. Energy management has become a competitive advantage, and maintenance teams are shifting from reactive fixes to predictive strategies. Insurance providers increasingly require detailed electrical monitoring, and regulations may demand documented proof of your protection systems. If any of these factors apply, electronic breakers are no longer a luxury—they’re a necessity.
Budget Constraints Are Real
I’ve never worked with anyone who has unlimited budget. The two-to-five-times cost gap between the two types adds up fast, especially when you’re equipping an entire facility. Sometimes the decision is simply that electronic breakers would be nice to have, but thermal-magnetic is what the budget allows.
That’s okay. Thermal-magnetic breakers are proven and reliable. If you choose quality breakers from verified manufacturers like Sincede, where we control every step from mold-making to assembly, they’ll protect your system for decades with minimal maintenance. You can always upgrade later if your system needs change—though retrofitting is obviously more expensive than getting it right the first time.
Another factor that is rarely discussed honestly is operational capability.
Many small contractors and local installers simply do not have the tools, training, or processes to properly commission and maintain electronic MCCBs. Firmware updates, parameter backups, communication troubleshooting, and cybersecurity are outside their normal scope of work.
In these situations, electronic breakers often end up being used like basic breakers—with default settings, disconnected communication modules, and no one reviewing the data. At that point, the project absorbs the cost without receiving the benefits.
For small teams and limited maintenance environments, thermal-magnetic MCCBs are often the safer and more realistic choice.
Future-Proofing Deserves Thought
It’s worth asking: what will your facility look like in five years? Are expansions planned? Will you add equipment with new electrical profiles? Might you need integration with a building management or energy tracking system?
If there’s any chance you’ll need those capabilities, investing in electronic breakers now is the smarter play. The added cost during construction or renovation is far less than a full retrofit later—and you’ll gain valuable operational data from day one that might reveal insights about your operation you wouldn’t otherwise discover.
When Thermal-Magnetic Is The Right Answer?
Choose thermal-magnetic breakers when your budget is tight, your loads are stable and predictable, and you’re working in residential, commercial, or light industrial settings. They’re ideal when coordination is simple and you don’t need monitoring or data collection. You’ll get reliable, maintenance-free protection at the lowest cost.
When Electronic Is Worth The Investment?
Go with electronic breakers when you need precise trip settings for selective coordination, your facility contains critical processes where downtime is costly, you require energy monitoring and load analysis, you want pre-fault warnings and predictive maintenance data, your loads vary significantly, or you expect future needs for advanced monitoring or integration with building systems.
In the end, there’s no single right answer. Many facilities use a mixed approach—electronic breakers for important loads and main distribution, thermal-magnetic for non-critical circuits. It’s often the best balance of cost, capability, and future readiness.
Conclusion
Budget and simplicity matter, but thinking ahead ensures your electrical system can evolve with your needs rather than limit them. Planning for future growth, changing loads, and smarter monitoring turns today’s choice into long-term flexibility and resilience.
Whether you need the rugged simplicity of a thermal-Magnetic MCCB or the precision of an electronic MCCB, quality is non-negotiable.
At Sincede, we don’t just sell breakers; we manufacture peace of mind. With 26 years of industry experience, we support distributors, panel builders, and project managers with factory-direct pricing and flexible SKD/CKD solutions.
