Early Precursors and Edison’s Patent
Let’s start at the beginning of circuit breakers. When electricity first became common, people quickly realized they needed ways to protect circuits safe from too much current. Thomas Edison was among the first to explore this idea, and in 1879 he filed a patent for a protective device that could interrupt lighting circuits in case of overloads or short circuits.
At the time, most systems relied on fuses, which had to be replaced each time they blew. Edison’s design pointed toward a reusable solution—a step away from “disposable protection” and toward something closer to what we use today. It was more of a conceptual breakthrough than a finished solution, but it showed that protecting circuits could be done in real time without constant replacement. What’s the difference Between Fuses and Circuit Breakers?
Still, these early devices had major limitations. Mechanical parts were fragile, performance was inconsistent, and they struggled with higher currents. For decades after Edison’s patent, fuses remained the dominant method because they were simple and cheap.
What Edison contributed was the starting point: the recognition that electrical safety required more than single-use devices. But the real transformation—making circuit protection practical, reliable, and scalable—would come later.
The Role of Fuses Before Breakers

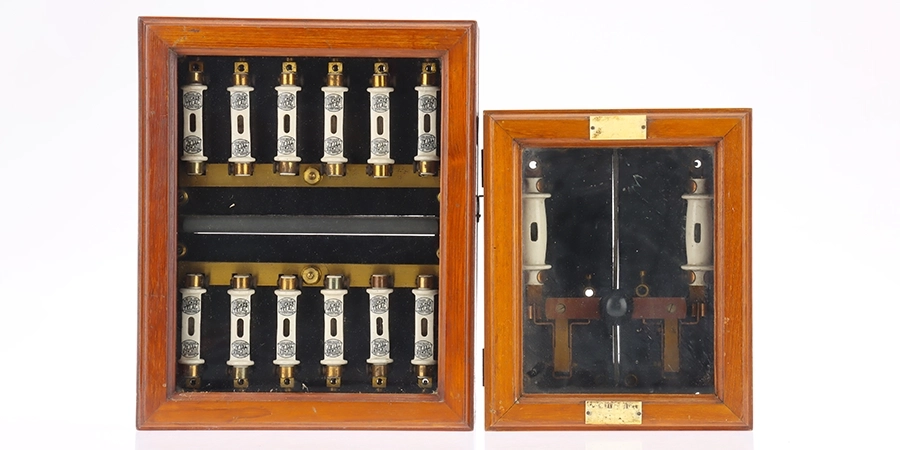

Before breakers became practical, fuses were the main protection. A fuse is simply a thin wire that melts when current exceeds a safe level, cutting off the flow. Edison and others used fuses because they were inexpensive and easy to produce.
However, replacing blown fuses was a constant hassle, particularly in large systems that needed frequent attention. Industrial facilities often had dozens or hundreds of fuses, meaning maintenance staff were constantly monitoring and replacing them. For homes and businesses, this could lead to downtime and even safety risks if the wrong replacement was installed.
Edison’s Contribution to Modern Safety
Edison’s patent introduced the principle of protecting circuits in real time, which was a crucial conceptual step. His idea of a reusable protective device foreshadowed the modern circuit breaker. By moving beyond disposable fuses, he helped pave the way for innovations that would make electrical systems safer and more convenient.
Yet, Edison’s devices were still limited by the technology of the era. They could not reliably handle high currents or control electrical arcs effectively. This limitation highlights an important point: innovation is cumulative. The practical, safe, and widely adopted circuit breakers we know today were the result of decades of improvements by engineers around the world.
The Invention of the Miniature Circuit Breaker
This part of the story always excites me, because it’s when circuit breakers became truly practical for everyday use. In 1924, two engineers from Brown, Boveri & Cie—Hugo Stotz and Heinrich Schachtner—filed a patent that changed everything. They created the first modern miniature circuit breaker (MCB), combining thermal and magnetic trips in a single device. For the first time, people no longer had to replace a fuse every time something went wrong. Instead, a breaker could simply be reset, saving both time and money.
This invention was a real turning point. Before MCBs, homes and buildings relied on fuses that needed constant attention. The new breakers reset with a simple flip of a switch, making them ideal for household panels. Factories that still used old fuse systems often had to replace them again and again. After switching to miniature breakers, the number of service calls went down a lot. This showed how much more efficient breakers were compared to fuses.
The design itself was clever and straightforward. A bimetallic strip handled slow overloads, while a magnetic coil took care of short circuits. When current rose too high, the strip bent or the coil pulled, instantly opening the contacts. This dual protection worked far better than fuses, which could only respond in one way.
How the Patent Came About
Stotz and Schachtner worked at a company focused on power equipment, so they understood the growing need for safer, reusable protection. Their 1924 patent offered exactly that. Even more importantly, the unit was compact enough to fit inside standard enclosures, which made it practical to roll out on a wide scale.
Advantages Over Fuses
Unlike fuses, these new breakers didn’t burn out after a fault. They could be reset and tested, which cut down on waste and reduced the risk of people installing the wrong replacement fuse. For residential users, this meant safer homes and far fewer headaches.
Spread to Household Use
By the mid-20th century, miniature breakers had become the standard in load centers. Companies like ABB—descended from Brown, Boveri & Cie—eventually produced billions of them. We can learn from their one billion MCB milestone that how much impact this simple invention had worldwide.
In the industry, I’ve seen how this breakthrough still drives value today. Contractors appreciate fewer callbacks, and customers appreciate the reliability. It’s a win for both sides.
Technical Simplicity for Better Reliability
Part of the success came from keeping the design simple. With fewer moving parts, MCBs were reliable, easy to maintain, and quick to trust. They caught on in Europe first, then spread globally. Even today, if you’re troubleshooting a modern panel, you’re still working with principles Stotz and Schachtner laid down a century ago.
This was the moment when electrical safety became accessible to everyone. If you’re just starting out in the trade, picture the difference: instead of fumbling for a new fuse in the dark, you simply flip a switch and restore power. That convenience—and safety—is the true legacy of the miniature circuit breaker.
Evolution Through the 20th Century
Looking back at the 20th century, it’s clear how quickly circuit breaker technology advanced. As power grids expanded, breakers had to manage higher voltages and more complex faults. This pushed engineers to move from oil, to air, and later to vacuum and gas solutions—each step making systems safer and more reliable.
In some older substations, equipment from different eras can still be found side by side. These sites offer a clear view of how circuit breaker technology has progressed, with each generation building on the lessons of the previous one.
Industrialization added urgency to these changes. Breakers had to interrupt arcs safely without exploding or failing, and engineers experimented with different ways to “quench” those arcs. The results became the foundation of the breakers we use today.
Oil-Enclosed Breakers (1920s–1940s)

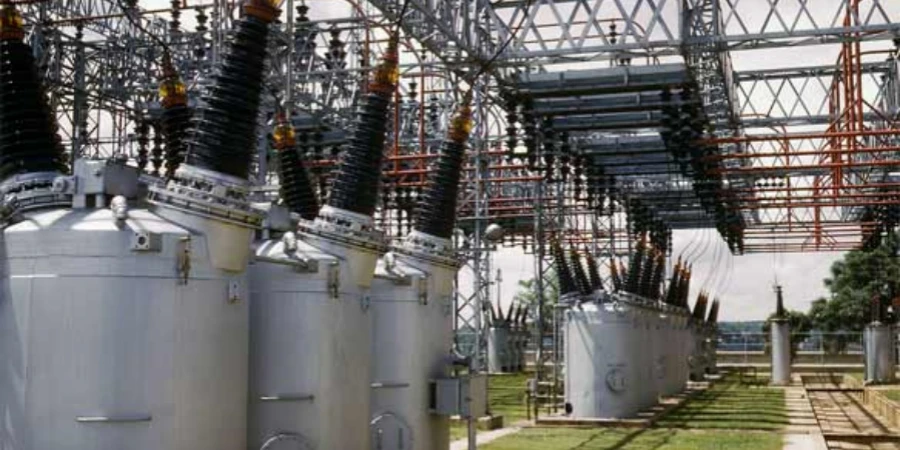

In the 1920s, oil became the main solution for high-voltage breakers. Contacts were submerged in oil, which absorbed heat and extinguished arcs, allowing breakers to manage growing electrical loads. This was crucial as electricity demand soared.
Oil breakers could handle faults in the thousands of amps, preventing massive blackouts. But they weren’t perfect—oil needed frequent testing, and contamination could lead to dangerous failures. Maintenance crews had to be vigilant, and fire risk was always a concern.
Air-Magnetic Breakers (1940s–1970s)
By the mid-20th century, air-magnetic breakers began to replace oil types. Westinghouse introduced the first medium-voltage version in 1945. These breakers used blasts of air and magnetic fields to stretch and extinguish arcs, with stored-energy springs for fast operation.
The isolated-pole design also boosted safety by separating each phase, reducing the chance of cross-faults. With no oil to test or replace, maintenance demands dropped significantly. In practice, this meant substations were safer places to work, with fewer risks of leaks or fires.
Vacuum and Gas-Insulated Breakers (1970s–Present)
The next leap came in the 1970s. For medium voltage, vacuum interrupters became the standard. Sealed contacts inside a vacuum extinguished arcs almost instantly, extending service endurance and reducing equipment size.

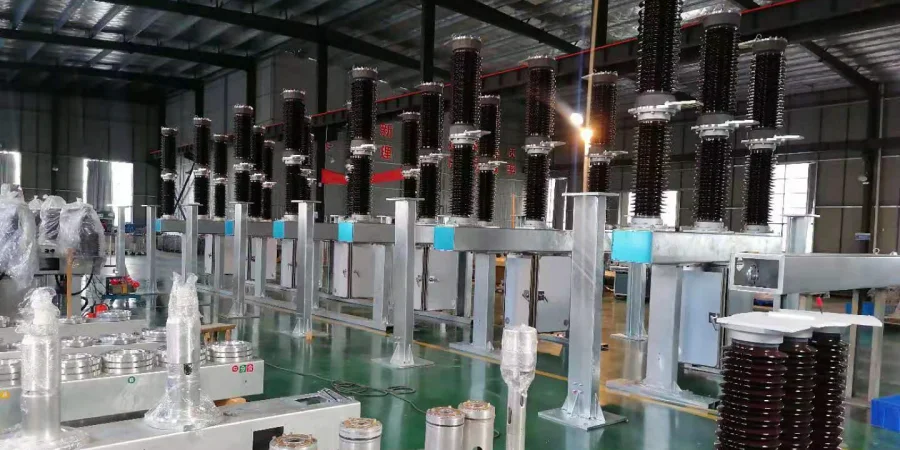

For high voltage, SF₆ (sulfur hexafluoride) gas breakers proved effective. This dense gas provided excellent insulation and arc-quenching ability, making it possible to handle extreme conditions in transmission systems. While SF₆ is a powerful greenhouse gas, today’s industry is working toward safer alternatives.
Comparing the Generations
| Breaker Type | Time Period | Key Feature | Limitation |
|---|---|---|---|
| Oil-Enclosed | 1920s–1940s | Arc quenching with oil | High maintenance, fire risk |
| Air-Magnetic | 1940s–1970s | Stored-energy springs | Bulkier design |
| Vacuum/Gas | 1970s–Present | Fast, reliable interruption | Initial high cost, SF₆ concerns |
This comparison shows how each design solved the problems of its predecessor while introducing new trade-offs.
The Bigger Picture
The evolution of breakers through the 20th century reflects the industry’s constant push for greater safety, reliability, and performance. From oil to air to vacuum and gas, every change was a response to the demands of larger grids and heavier loads.
If you work with modern systems today, it’s worth remembering that the dependable breakers in front of you are the product of a century of trial, error, and innovation.
From Thermal-Magnetic to Smart Breakers
Circuit breakers have come a long way since the days of simple thermal-magnetic units. Modern devices go beyond basic overload protection, incorporating intelligent features that can detect and respond to potential issues before they cause faults. This development improves reliability and simplifies management of electrical systems, particularly in larger industrial installations.
Modern breakers still rely on the thermal-magnetic principle but add smart technology on top. The thermal part uses a bimetallic strip that bends when it heats up under a slow overload, tripping the mechanism. The magnetic side reacts to sudden surges, with a coil pulling the latch open almost instantly. Together, these features handle both gradual heating and sudden short circuits.
As electrical grids grew more complex, simple trips weren’t enough. Smart breakers now include microprocessors to monitor current, voltage, and even temperature in real time. They can send alerts, allow remote resets, and integrate with apps or control systems—dramatically cutting response times and reducing downtime.
From Basic Trips to Predictive Tech
Early thermal-magnetic breakers worked well for homes and small buildings, but industries needed more precise fault detection. Today’s breakers use algorithms to detect trends indicating potential wear or unusual heat spikes, helping prevent failures and extend equipment endurance.
Smart breakers can detect issues such as loose connections before they lead to shutdowns. Many of these devices now integrate with IoT systems, providing facility managers with a comprehensive view of their electrical infrastructure.
Key Components in Modern Designs
Beyond monitoring and predictive features, the physical design of breakers also plays a key role in reliability. Contacts face extreme conditions, so materials like silver alloys are used to resist erosion.
Arc chutes split and cool sparks, ensuring interruptions happen safely. While vacuum and SF₆ breakers improved these capabilities for higher voltages, smart add-ons complement them with diagnostics—such as event logs—that make troubleshooting much easier.
Benefits for Users
The impact of these advances is clear: fewer outages, lower maintenance costs, and safer systems. In renewable energy setups, for instance, smart breakers handle fluctuating loads from solar panels or wind turbines without problem.
| Feature | Traditional Thermal-Magnetic | Smart Breakers |
|---|---|---|
| Detection Method | Bimetallic strip and coil | Sensors and algorithms |
| Monitoring | None | Real-time data, remote access |
| Maintenance | Reactive | Predictive alerts |
| Integration | Standalone | IoT and grid compatible |
This table shows how far breaker technology has progressed. If you’re upgrading panels, smart breakers are a strong option for future-proofing. They align with modern regulations and the move toward more efficient, automated systems.
From simple resets to proactive fault management, this evolution reflects our field’s ongoing push to keep electricity flowing safely, reliably, and efficiently.
Final Thoughts
Circuit breakers might seem simple, but their story is full of innovation. From Edison’s first ideas to modern resettable breakers, each improvement made electricity safer and more convenient. Next time you flip a switch, you’re seeing over a century of progress at work.
