When we talk about circuit breakers, we can’t miss bimetal strips. These small, simple components quietly play a vital role in protecting electrical systems. They often go unnoticed, yet they work every day to prevent damage and keep everything running smoothly.
A circuit breaker without a bimetal strip is like a lighthouse without a light. It might look sturdy and reliable, but when danger comes, it cannot warn or protect. These tiny components quietly keep systems safe, stepping in automatically whenever something goes wrong.
Their presence reminds us that the most important solutions are often simple and invisible. Even the smallest, overlooked parts can have a huge impact, ensuring reliability, preventing accidents, and giving people peace of mind in ways we rarely see.
What Are Bimetal Strips and How They Work?
I’ve seen plenty of countless protection methods. But one technology that never fails to impress me is the bimetal strip. These small, clever devices have been protecting electrical systems for decades, quietly doing their job while rarely getting the recognition they deserve.
The Foundation of Thermal Protection
A bimetal strip is one of the simplest and smartest solutions for electrical protection. At its core, it’s just two different metals bonded together, designed to react in a very predictable way to changes in temperature.
I still remember the first time I saw it in the factory. I was amazed by how something so mechanically simple could deliver such reliable protection.

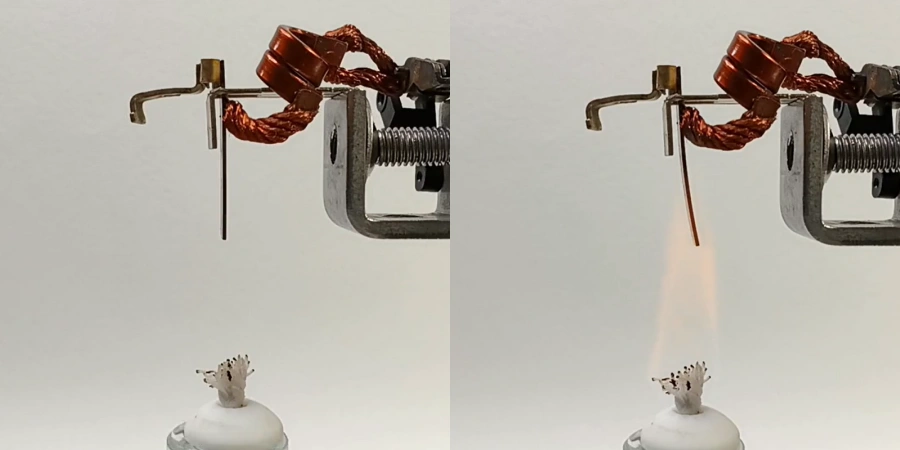

Here’s how it works: when current flows through a circuit, it generates heat due to I²R losses (the resistance of the conductor multiplied by the square of the current). That heat warms the bimetal strip. Since the two metals expand at different rates, the strip bends. the difference in expansion makes it curve in a controlled and repeatable way. Seeing it bend during a training session is often the “aha moment” for many beginners.
Precision Through Simplicity
What makes bimetal strips truly impressive is their accuracy. Modern designs can trip within just 5% of their rated current – a remarkable level of precision for a purely mechanical device. On top of that, they work reliably across a wide range of conditions, from -40°C to 85°C, whether in outdoor installations or indoor panelboards.
Another advantage is that they are self-powered. Unlike electronic protection devices, bimetal strips don’t need an external power source or complicated circuits. They respond directly to the heat from fault current, which means they still work during power outages or control circuit failures. This kind of reliability has saved countless systems from damage over the years.
| Characteristic | Typical Range | Key Benefit |
|---|---|---|
| Trip Accuracy | ±5% at rated current | Consistent protection |
| Operating Temperature | -40°C to 85°C | Wide environmental range |
| Response Cycles | >10,000 operations | Long service life |
And here’s one more practical benefit: bimetal strips reset themselves. After a trip, once the strip cools, it bends back into shape. This allows the circuit breaker to be reset manually or automatically, without replacing any parts. Compare that with fuses, which need to be swapped out after every overcurrent event, and the value becomes clear.
Construction and Materials Used

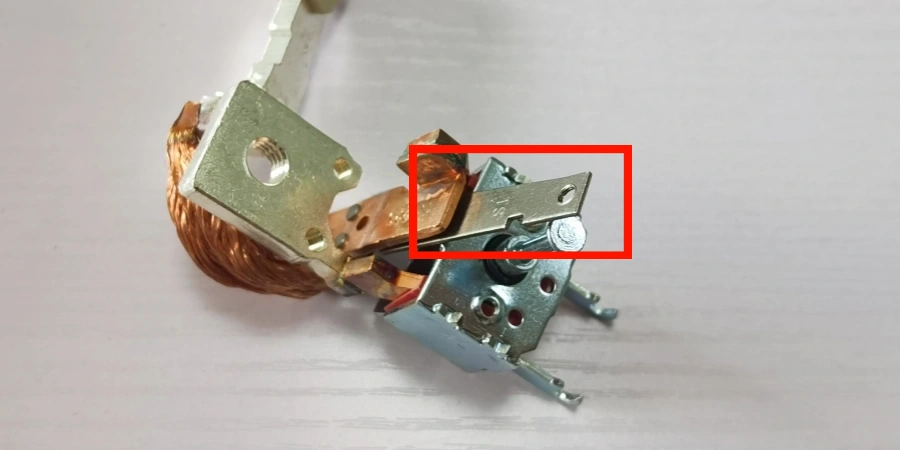

At first glance, bimetal strips may look like two pieces of metal stuck together. In reality, they’re carefully engineered laminates where every detail—material choice, thickness ratios, and bonding techniques—directly affects performance.
Material Selection and Properties
The metals chosen for a strip define how it will behave. On the high-expansion side, manufacturers often use manganese steel. It expands significantly with heat and holds up well mechanically. On the low-expansion side, phosphor bronze or brass are common choices. These metals don’t expand as much and also offer good electrical conductivity.
Each layer is just 0.2 to 0.5 millimeters thick. The ratio between them matters a lot:
If one side is too thick, the strip bends either too slowly or too much.
If too thin, the strip won’t have the strength to last thousands of cycles.
Bonding is another critical step. This isn’t about glue or screws—the metals are joined at the atomic level. Techniques like hot rolling, brazing, or explosion welding create a permanent connection so the layers act as one for their entire working life. Without this, the strip could delaminate and fail completely.
Engineering for Specific Applications
Different uses call for different strip designs. For example:
Residential breakers use strips tuned for lower currents and common temperature swings.
Industrial breakers demand strips that withstand higher heat and tougher duty cycles.
The amount of bending, or curvature profile, is carefully calibrated during production. Engineers typically design for 1–3 millimeters of deflection, which is enough to trigger the trip mechanism at the right current. Achieving this requires detailed thermal and mechanical modeling to predict exactly how the strip will behave under stress.
| Material Component | Typical Alloy | Primary Function |
|---|---|---|
| High-expansion layer | Manganese steel | Provides bending force |
| Low-expansion layer | Phosphor bronze/brass | Maintains stability |
| Thickness ratio | 1:1 to 2:1 | Controls sensitivity |
Finally, strict quality control ensures consistency. Every batch is tested with thermal cycles, deflection checks, and fatigue trials. Thanks to this rigorous process, a well-made bimetal strip can keep working for decades without needing recalibration or replacement.
Thermal Bending Mechanics and Trip Operation
One of the biggest “aha” moments early in my career was realizing how heat can turn directly into mechanical motion.
At first, the way a bimetal strip bends under heat looks almost magical. But the physics behind it are well understood and have been refined by engineers over decades of development.
The Heat-to-Motion Conversion Process
When too much current flows through a circuit, the bimetal strip heats up. This happens both from its own resistance and from the warmth of nearby conductors. What’s surprising is that the strip doesn’t need extreme heat to react. Most strips bend enough to trigger at just 50–100°C above the surrounding temperature.
Here’s what happens inside: manganese steel (the high-expansion metal) grows more with heat than brass or bronze (the low-expansion metal). Since the two layers are bonded together, this difference creates stress that forces the strip to curve. The strip always bends toward the low-expansion side, producing a steady and predictable motion.
The bending isn’t all-or-nothing. With a small overload, the strip deflects just a little—often not enough to trip. That way, brief surges don’t cause nuisance shutdowns. But with higher currents, the heating grows quickly, the strip bends more, and eventually the breaker trips.
Timing Characteristics and Current Response
The real strength of bimetal strips lies in their time-current behavior. Unlike instant trip devices that respond immediately, thermal protection is inverse-time: the higher the current, the faster the trip.
This is a perfect match for how electrical equipment behaves. Motors, transformers, and cables can safely handle moderate overloads for a while, but they need fast protection against large faults. The bimetal strip provides this naturally, without complex electronics or sensors.
How quickly a strip reacts depends on its thermal time constant, which is shaped by its mass, surface area, and how it’s connected to the current path. Strips for motor protection often have longer time constants so they can ride through startup surges. Strips for lighting or control circuits tend to respond much faster.

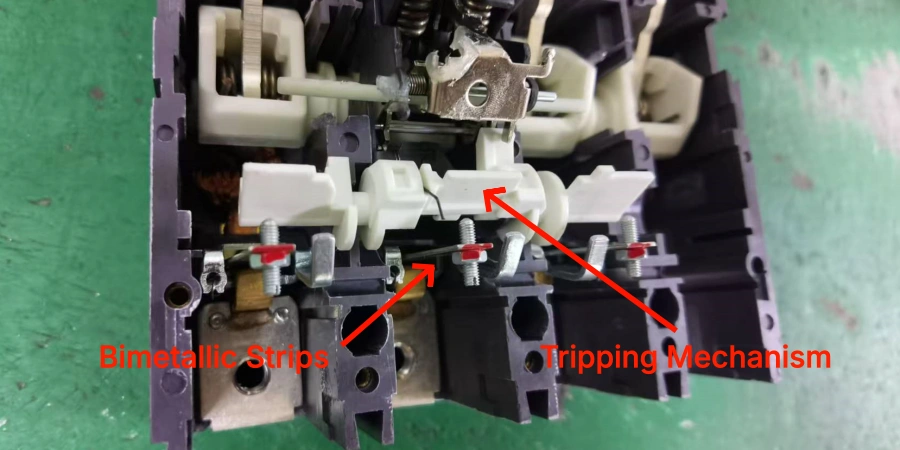

Mechanical Trip Interface
The last step is turning the strip’s tiny bend into enough motion to unlatch the breaker. This requires smart mechanical design. Most breakers use a lever system that amplifies the strip’s deflection. Manufacturers then fine-tune the linkage so that tripping happens at exactly the right current level. Precision tooling and careful calibration make sure every unit behaves consistently.
| Current Level | Typical Trip Time | Strip Response |
|---|---|---|
| 1.13 × rated | 60 minutes | Gradual heating |
| 1.45 × rated | 30 minutes | Moderate deflection |
| 2.0 × rated | 5-10 minutes | Rapid deflection |
Resetting works in reverse. As the strip cools, it straightens out again. Once it’s back to its original shape, the latch can be reset manually. Cooling usually takes a few minutes, which provides a built-in delay. This prevents someone from immediately re-energizing a circuit that just tripped, giving the system time to stabilize.
Advantages and Limitations
Bimetal strip technology has clear strengths as well as some limitations. Like any engineering solution, these devices perform exceptionally well in certain areas but require careful consideration in others.
The Compelling Advantages of Bimetal Technology
What stands out most about bimetal strips is their reliability. These devices can operate millions of cycles without recalibration—something I’ve seen firsthand in older installations where 10-year-old breakers still perform within their original specifications. This durability comes from their purely mechanical design, with no electronics to drift, fail, or require external power.
Cost-effectiveness is another clear advantage. Producing bimetal strips involves relatively simple materials and processes, which keeps both initial and lifetime costs low. Many procurement teams favor bimetal-based protection for standard applications because of this economic benefit.
The precision of modern bimetal strips is also impressive. Advanced manufacturing techniques produce trip accuracy within ±5% of the rated current—matching or exceeding some electronic systems. And this precision remains stable over decades, eliminating the frequent recalibration required by other technologies.
Finally, bimetal strips are inherently safe. They fail in predictable ways, usually becoming more sensitive rather than less protective, so equipment remains safeguarded even as components age.
| Advantage | Technical Benefit | Practical Impact |
|---|---|---|
| No external power required | Self-contained operation | Works during outages |
| High cycle life | >10,000 operations | Reduced maintenance |
| Temperature stability | ±10% over operating range | Consistent protection |
| Simple reset operation | Manual or automatic | Quick service restoration |
Understanding the Practical Limitations
Despite their strengths, bimetal strips have limitations that must be considered:
Ambient temperature sensitivity: A 10°C rise in ambient temperature can lower the trip current by about 8%, potentially causing nuisance trips in hot environments.
Response time to short faults: Bimetal strips rely on heat buildup to bend. Very brief overcurrents may not trip the breaker, which is why most modern designs pair thermal strips with magnetic instantaneous elements.
Mechanical fatigue: Frequent cycling near the trip threshold, or high-vibration environments, can accelerate wear. While uncommon in standard applications, careful alloy selection and stress-relief designs have mostly lessened this issue.
How Manufacturers Address Limitations?
Manufacturers have developed clever solutions to address these limitations while keeping the benefits of bimetal technology:
Temperature compensation: Specialized alloys with lower temperature coefficients or ambient temperature sensing help maintain consistent trip behavior.
Hybrid designs: Combining thermal bimetal strips with electromagnetic or electronic instantaneous elements provides fast response to short-circuit faults without losing the reliability and cost-effectiveness of the thermal element.
Enhanced materials and quality control: Stress-relieved alloys, optimized thickness ratios, and rigorous testing extend operational life well beyond 10,000 cycles, even in demanding conditions.
These strategies allow bimetal strips to remain a reliable, economical, and safe choice for a wide range of electrical protection applications.
Conclusion
Bimetal strips might look simple, but they show how clever design can turn heat into action. Their reliability reminds us that the best solutions aren’t always the most complicated—they’re the ones that work quietly, last a long time, and get the job done well.
