Have you ever wondered how circuit breakers manage to stop dangerous electrical arcs? Well, the answer lies in a component called the arc chute, which plays a key role to ensure our electrical systems are safe and reliable.
Back in the late 19th century, electrical equipment was still developing. Many people didn’t realize how dangerous electrical arcs could be to both equipment and the environment. It wasn’t until fires caused by electrical arcs that people started to develop a device to contain and extinguish these arcs. This invention later became known as the “arc chute”.
As someone who has worked in the electric industry for many years, I’ve seen first-hand how important arc chutes are in preventing damage and ensuring the smooth operation of circuit breakers. Let’s explore how these devices work—and why they remain necessary today.
What Is an Arc Chute?
Arc chutes are important components in circuit breakers. They are designed to efficiently extinguish the electrical arc that forms when the circuit breaker stops the flow of current. Without arc chutes, electrical arcs could continue, leading to overheating, damage, or even fires.

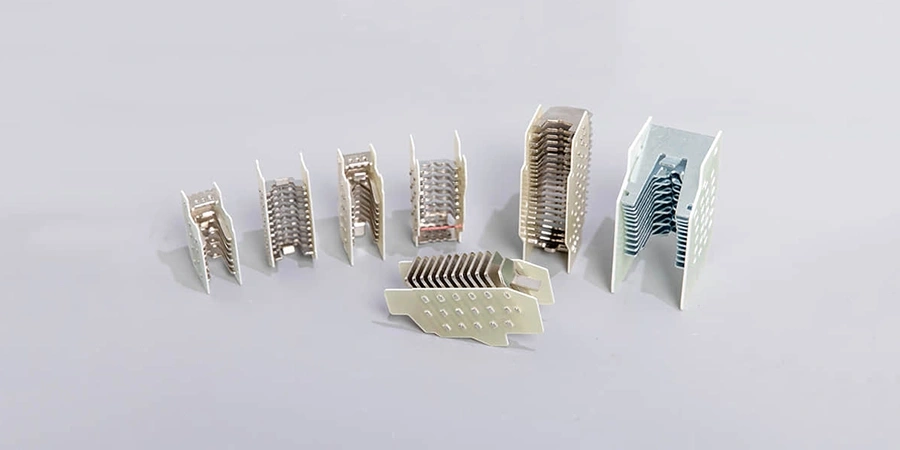

Arc chutes typically consist of parallel metal plates—often steel or copper—separated by insulating material. They act like a maze, directing and guiding the arc, lengthening and cooling it to prevent damage to the breaker’s contacts and make sure the system is safe. The number and distance between these plates change based on the breaker’s current and voltage ratings. This helps spread out the arc more effectively.
In my early days in the industry, I was amazed by how these simple-looking metal plates could handle such powerful arcs. It shows how basic physics and engineering work together and they play a big role in keeping the system safe.
How Do Arc Chutes Work?

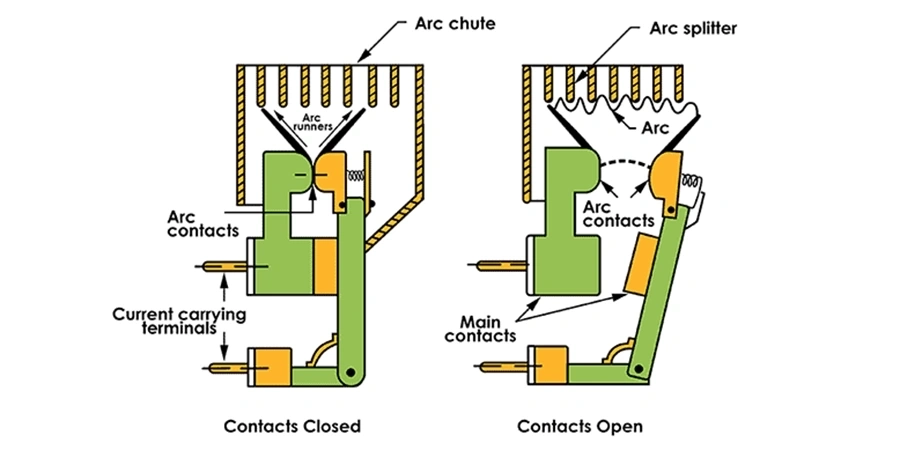

When a circuit breaker opens, the sudden gap in the circuit causes an arc as electricity leaps across it. That’s the timing when arc chutes come into play.

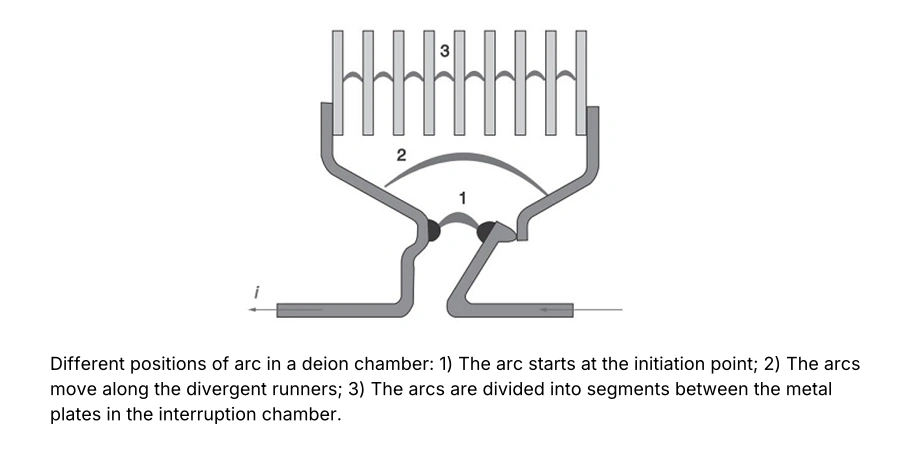

The arc chute directs this arc into its series of metal plates, splitting it into smaller parts. This lengthens the arc’s path, increasing its electrical resistance and reducing current flow, while the plates absorb heat to cool the ionized gases. The rapid cooling and lengthening process deionizes the arc path, preventing re-ignition and extinguishing the arc in milliseconds.
I recall a training session where we had a demonstration of an arc chute in action. The arc visibly traveled through the plates, and I was struck by how swiftly it was quenched. It’s a vivid reminder of why proper design and maintenance matter, especially in places like factories or power grids where safety matters most.

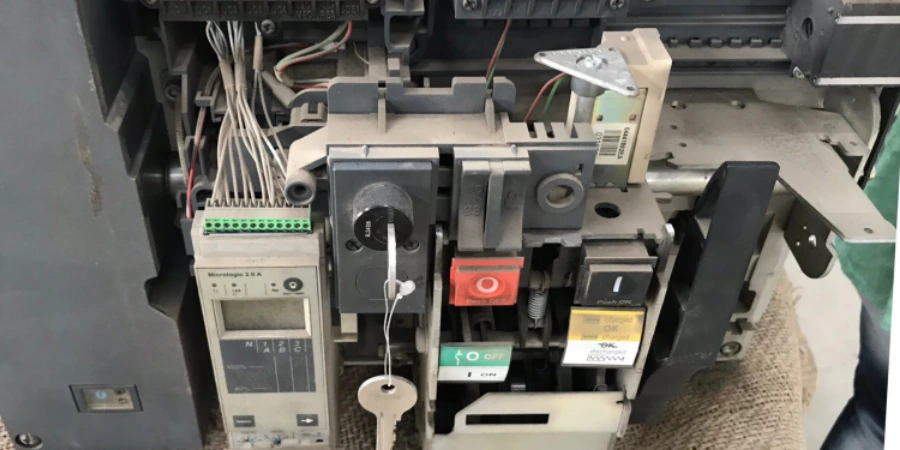

How to Maintain Arc Chutes?
Like any other electrical component, arc chutes need regular maintenance to work properly.
Maintaining arc chutes involves keeping them free from contaminants like dust or moisture, which can affect their performance. High humidity and excessive loads can also impact their effectiveness.
From my experience, it’s always better to have a preventative maintenance schedule to avoid unexpected failures. It’s recommended to inspect arc chutes every 6 months for corrosion or debris buildup. Use a non-conductive brush and compressed air for cleaning, and replace plates if they show more than 10% wear.
I remember a particular incident where a customer was experiencing frequent trips in their circuit breaker. When in inspection, I found that the arc chute was clogged with dust and debris, which was preventing proper arc quenching. After cleaning and maintenance, the issue was solved. Thank god, nobody is hurt.
Compared to Other Arc Quenching Methods

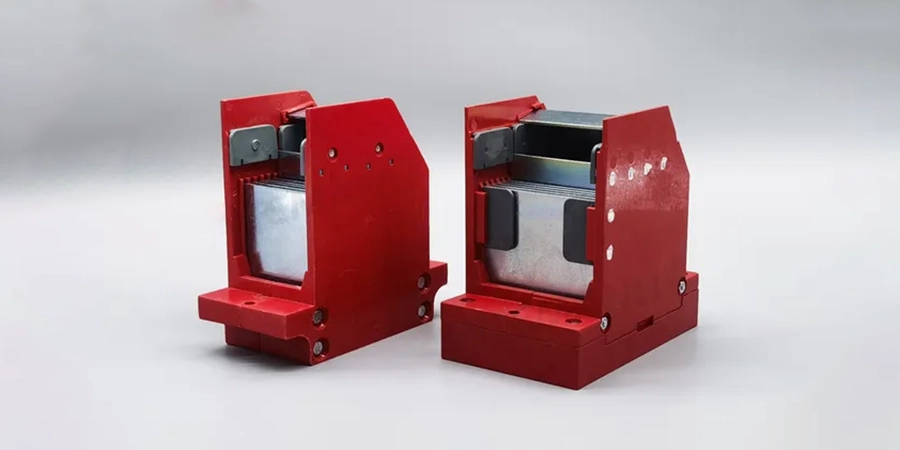

Low-voltage circuit breakers (like MCBs, MCCBs, and ACBs) deal with smaller currents and voltages, so the arc energy they produce is easier to manage. The arc chutes’ simple design and low cost make it a great fit for low-voltage use.
But as voltages get higher—like above 1000V for AC or 1500V for DC—arc chutes aren’t used as much. The arcs at high voltages are too strong and hard to control with just air and metal plates. They need more space to stop the arc from jumping back, and air isn’t strong enough to handle it alone. That’s why other methods take over in those situations.
Here’s a breakdown of how arc chutes compare to other ways of quenching arcs:
| Method | Description | Voltage Range | Advantages | Disadvantages | Typical Applications |
|---|---|---|---|---|---|
| Arc Chutes (in ACBs) | Uses metal plates to segment and cool the arc | Up to 15 kV | Effective for high fault currents, protects contacts, cost-effective | Lower dielectric strength vs. SF6, more maintenance than vacuum | Industrial power systems |
| Oil Circuit Breakers | Relies on oil vaporization to quench the arc | Up to 230 kV | High interrupting capacity | Oil degradation, fire hazard | Legacy high-voltage systems |
| SF6 Circuit Breakers | Uses SF6 gas for arc quenching | Up to 800 kV | High dielectric strength | Greenhouse gas, high cost | High-voltage grids |
| Vacuum Circuit Breakers | Quenches arcs in a vacuum | Up to 72 kV | Minimal arcing, low maintenance | Higher cost, less suited for ultra-high voltages | Medium-voltage networks |
Arc chutes in ACBs work great for big currents in low-voltage setups and keep the breaker’s contacts safe, but they don’t match SF6 or vacuum breakers when it comes to handling high voltages.
At higher voltages—like 35 kV or more—the arc gets too wild for arc chutes. Air can’t stop it fast enough, and the chute would need to be huge to work, which isn’t practical. That’s where SF6 and vacuum step in—they’re faster and stronger for those big voltages, like in power grids or substations.
Oil quenching, used in older breakers, could also handle high voltages by cooling arcs with oil, but it’s messy and risky, so it’s mostly phased out now. Still, arc chutes are simpler and cheaper, making them a solid choice for many low- and mid-voltage jobs.
When you are choosing between different types of circuit breakers, it’s essential to consider the specific needs of the application, including cost, maintenance requirements, and environmental factors. Arc chutes provide a balance that works well for many scenarios, which is an important consideration for industry professionals.
Market Insights and Trends
The worldwide circuit breaker market is set to grow a lot in the coming years. It’s expected to go from $16.31 billion in 2025 to $26.63 billion by 2033, increasing at a steady rate of 6.32% each year, according to a report by Straits Research.
In 2025, air circuit breakers (ACBs) are projected to be a notable part of this market, with an estimated value of $3.53 billion, as reported by Coherent Market Insights. On the other hand, SF6 circuit breakers lead the pack with 53.0% of the market, or about $8.65 billion, based on data from Market Research Future. This shows that arc chutes, a key part of ACBs, still have a strong place in the market, especially where they’re affordable and work well.
Looking ahead, people are starting to care more about the environment, which might push the industry toward greener options like vacuum circuit breakers. This is because SF6 is a harmful greenhouse gas that could face tougher rules. Even so, arc chutes are still super important right now, especially in places like Asia-Pacific and Latin America where industries are growing fast. These trends are really helpful for anyone in the electric industry planning to upgrade equipment or make smart investment choices.
Conclusion
Arc chutes may be small, but they play a key role in circuit breakers by controlling electrical arcs and keeping power systems safe and reliable. Learning how they work and where they are used helps us understand the technology behind electrical safety.
As the power industry grows, arc chutes will continue to be essential. For those in the industry, it’s a good idea to check maintenance schedules for arc chutes to keep them working well.
