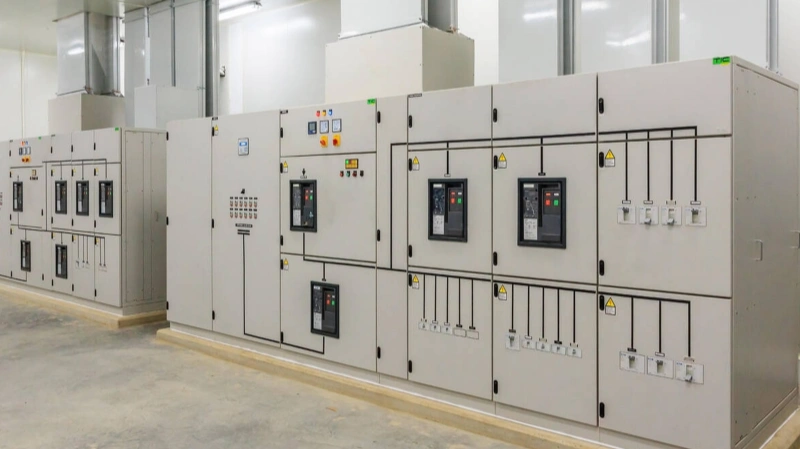

Have you ever wondered what’s inside the electric panels that power our homes and businesses? These panels might look simple, but they play a big role in keeping our electrical systems safe and efficient. Inside each panel, there are many parts working together, like circuit breakers, fuses, busbars more.
Each part has an important job. For example, circuit breakers protect us from electrical overloads, and busbars help distribute electricity evenly.
Whether you’re an electrician or just curious about how things work, knowing about these components can be very helpful. Let’s dive in and learn more about them.
Circuit Breakers
If there’s one component in an electric panel that you should absolutely know about, it’s the circuit breaker.

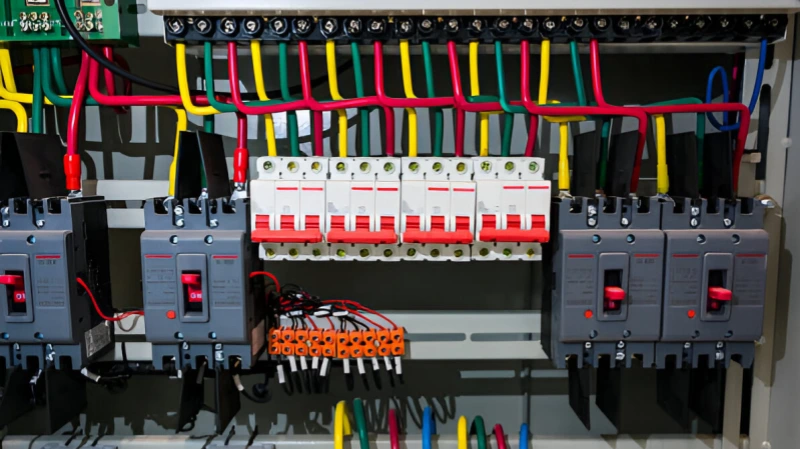

A circuit breaker is a safety switch that automatically cuts off power when it finds there’s an overload or short circuit. Without circuit breakers, electrical systems would easily overheat, leading to fires or serious damage.
There are many types of circuit breakers used in electric panels:
Miniature Circuit Breaker (MCB): These are commonly found in homes and small offices. They’re designed to handle lower electrical currents, usually up to 125A, and protect circuits from overloads or short circuits.
Molded Case Circuit Breaker (MCCB): These are used in factories, commercial buildings, and large machinery. They’re built for industrial settings where higher power demands require stronger protection. MCCBs can handle much larger currents, typically ranging from 100A to 2500A.
Residual Current Circuit Breaker (RCCB): This type of breaker focuses on safety by detecting small electrical leaks, often caused by wiring problems or damaged insulation. While MCBs and MCCBs protect against overcurrent, RCCBs are designed to prevent electric shocks by cutting off power when even a small leakage (usually 30mA or less) is detected.
Circuit breakers are like security guards at a concert—they ensure electricity flows smoothly, just like guards manage the crowd. But if things get out of control, such as an overload or short circuit, they step in immediately, cutting off the power to prevent fires, equipment damage, and other electrical hazards, keeping the system safe and stable.
Fuses
Before circuit breakers became the go-to solution for overcurrent protection, fuses were the main choice.

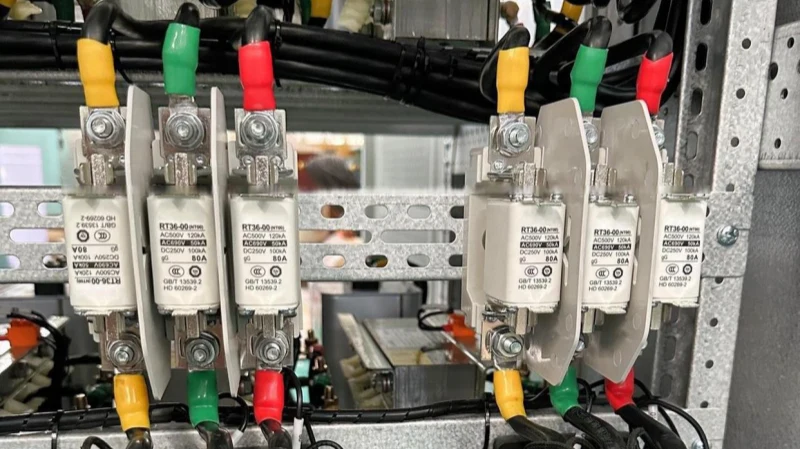

A fuse works by using a thin wire or metal strip that melts when too much current passes through, effectively breaking the circuit and stopping the flow of electricity. This simple yet effective device has been around for over a century and remains a reliable protection solution in many settings.
Unlike circuit breakers, which can be reset after tripping, fuses can only be used once. Source: What is the Difference Between Fuses and Circuit Breakers?
Even in modern electrical systems that use circuit breakers, fuses are still important because they can add an extra layer of protection.
Fuses react very quickly to sudden surges in electricity. They’re often used in places where fast shutdown is critical, like with sensitive electronics, to protect them from sudden electrical problems.
Another advantage is that they’re cheap and simple to replace. This makes them a great choice for older systems or situations where installing circuit breakers might be too expensive or unnecessary.
In short, while most modern systems rely on circuit breakers, fuses are still useful when you need fast, affordable protection, especially in cases where speed or cost is a big concern.
Busbars

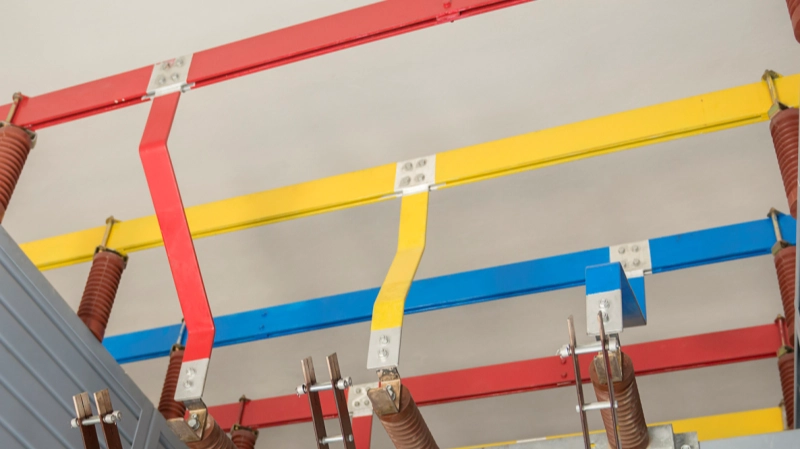

A busbar is a metal strip that carries large amounts of electricity and distributes it well across circuits. They are also widely used in batteries and electric cars.
Busbars come in different types, usually made of copper or aluminum. Copper is like the superhero of conductors—it’s really good at letting electricity flow through, and it’s super durable.
Aluminum is lighter and cheaper, and doesn’t perform as well as copper. It’s a good choice when you need to save some money or weight, but when it comes to the heavy-duty tasks, copper is usually the winner.
A busbar is like a highway for electricity. Just like a highway has many lanes for lots of cars, a busbar helps large amounts of electricity flow smoothly to different parts of a system. Without busbars, every circuit would need its own wire, making things messy and complicated.
Instead of having thousands of wires, a busbar keeps everything simple and organized. It’s like having one main road that makes sure electricity gets where it needs to go quickly and efficiently.
Isolating Switch

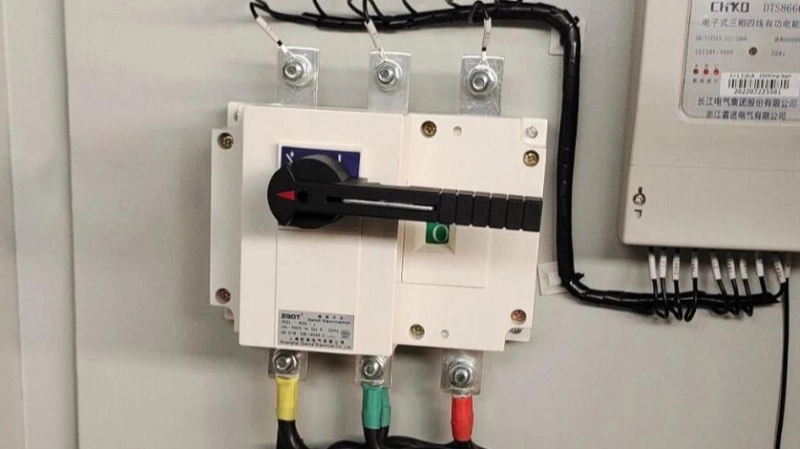

An isolating switch, also called an isolator or disconnector, is a manually switch used to safely cut off power from an electrical system. It makes sure that the circuit is completely turned off so that people can work on it without risk of electric shock.
Unlike circuit breakers, fuses and other devices, which can turn off power while the circuit is still running, isolating switches are only used when the circuit is already off. They create a clear, visible gap in the circuit to show that it’s safe to work on.
You’ll often find them in electrical systems, factories, and power distribution setups. They’re an important safety tool, especially during repairs or maintenance, to keep workers safe and prevent accidents.
Relays & Contactors
Imagine, you’re relaxing on your couch and want to turn on your backyard swimming pool pump. The pump is big and powerful, so you need a strong switch to handle the huge electricity safely.
Besides, you don’t want to go outside every time you need. Instead, you want to control it remotely from the comfort of your couch.
This is where relays and contactors come in handy!

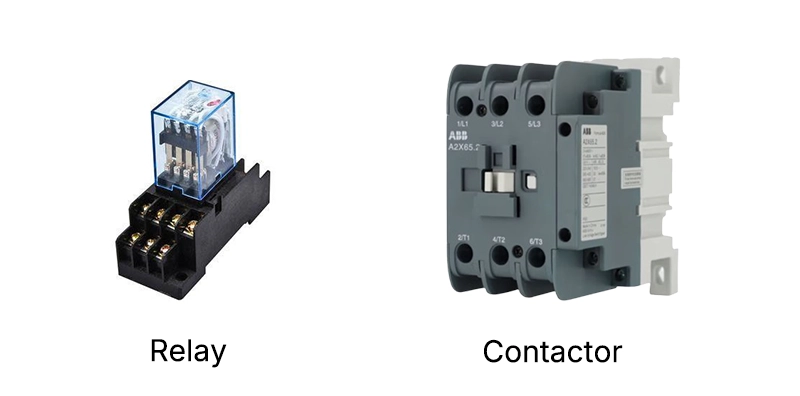

Relays and contactors have similar funtions. Both of them are like "middlemen", they use a small signal to control a larger electrical circuit, making them important in automation and control systems. However, they are also different for different tasks. Source: Contactor vs Relay: Understanding the Differences and Applications
Below is the detailed comparison:
| Feature | Relays | Contactors |
|---|---|---|
| Application | Used in low-current, low-voltage control circuits | Used in high-current, high-voltage load circuits |
| Current Capacity | Handles small currents (typically <10A) | Handles large currents (tens to hundreds of amps) |
| Size | Small | Large |
| Switching Speed | Fast (5-20 milliseconds) | Slower (15-50 milliseconds) |
| Lifespan | Long (1 million+ operations) | Shorter (around 0.1 million operations) |
| Functionality | Only control function, no protection | Includes protection features (overload, overcurrent, undervoltage) |
Think of contactors as the big, strong brothers—they’re powerful and built for handling heavy-duty tasks. Relays are like the smaller, more precise siblings—they’re great for controlling smaller tasks with accuracy.
Terminal Blocks

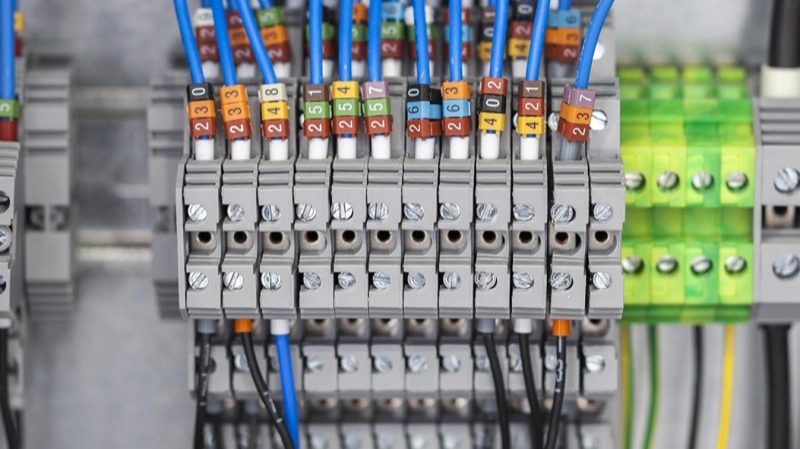

If you’ve ever looked inside an electrical panel and found how neatly the wires are arranged, you can thank terminal blocks for that organized setup.
What Do Terminal Blocks Do?
Connect Wires: They provide a safe and reliable way to connect wires without twisting or soldering. This makes wiring more efficient and less likely to mistakes.
Organize Wiring: They work as a center for all connections, keeping wires neat and easy to follow. A well-organized panel makes it easy to find the problems.
Safety: They prevent short circuits and reduce electrical risks by making sure each wire is securely connected in the right place, reducing electrical risks.
Easy Maintenance: They make it simple to add, remove, or change wires, making repairs and upgrades easier.
Without terminal blocks, electrical panels would become a tangled mess of wires, much like a drawer full of disorganized books. They keep everything in order and make the whole system safe and efficient.
Surge Protection Devices

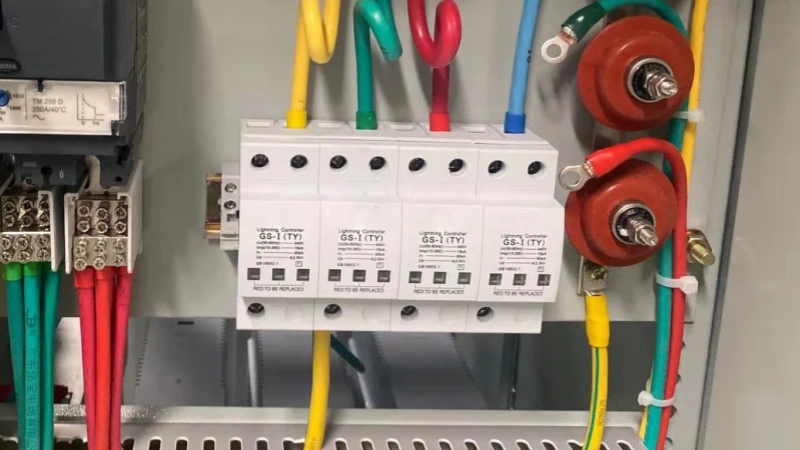

Do you know why some electronics survive lightning storms while others burn out? The secret behind is Surge Protection Devices (SPDs), which protect against dangerous voltage spikes.
SPDs are designed to detect sudden voltage spikes caused by lightning strikes, power surges, or the switching of large equipment nearby. When a surge is detected, the SPD quickly redirects the excess voltage to the ground, safely moving it away from sensitive equipment. This process protects electronic devices like computers, TVs, and air conditioners from damage made by power surges.
Without SPDs, powerful voltage spikes can instantly damage or destroy your electronics and you have to pay for expensive repairs or replacements. SPDs give you peace of mind by protecting your valuable devices from unpredictable power surges.
Power Transformers

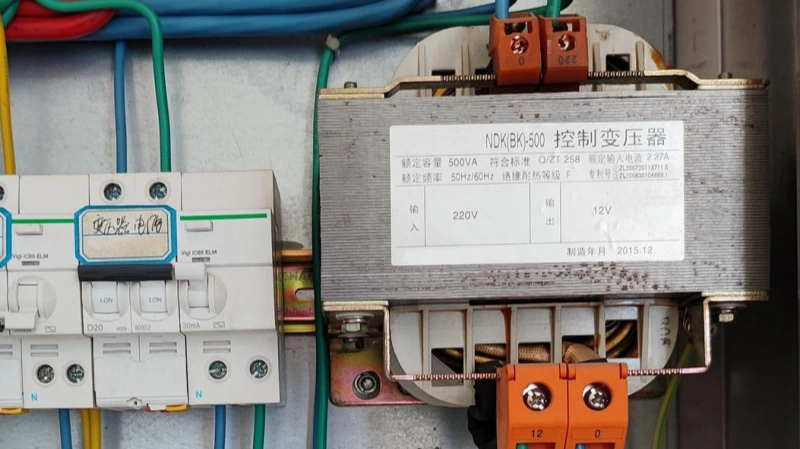

In panels, transformers are important because they adjust voltage levels to make sure everything works safely and efficiently. They are like voltage adapters, making sure the right amount of voltage goes to different parts of the system.
Why Are Power Tranformers Important?
Step-Down Transformers: They lower high voltage from the power supply to a safe level for the panel and its connected circuit, protecting sensitive devices.
Step-Up Transformers: Sometimes, transformers in panels increase voltage for specific circuits that need more power.
Control Transformers: They provide stable voltage to control circuits. They ensure devices like PLCs, relays, and get the exact voltage they need to work well.

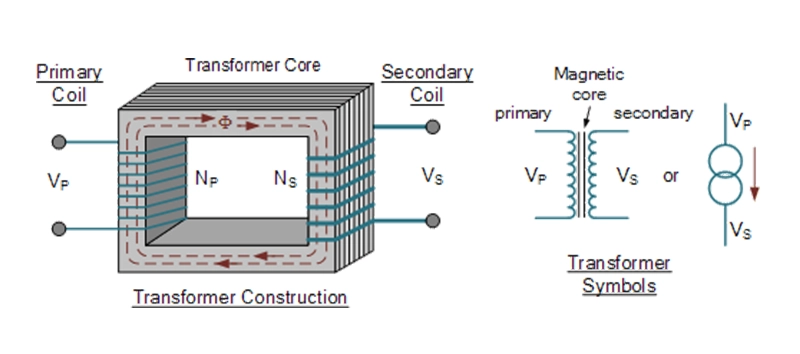

Transformers use a principle called electromagnetic induction to change voltage levels. They have two coils—primary and secondary—and by adjusting the number of turns in each coil, they can increase or decrease the voltage as needed.
Transformers are like skilled custom tailors for electricity. They ensure that voltage is perfectly adjusted, making sure every part of the system gets the right amount of power it needs.
Current Transformers

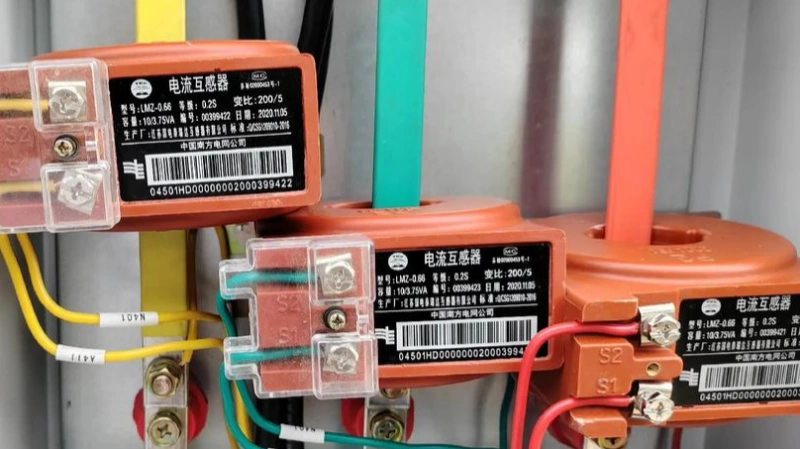

Current transformers, also called instrument transformers, are devices used to measure high electrical currents safely. They reduce high currents to a much lower level so to be easily measured by instruments. If we were to measure the high current directly, it could damage the measuring devices.
Current transformers’ working principle is similar to power transformers, both following electromagnetic induction. However, their jobs are different:
Purpose: Current transformers are designed to measure current, not to change voltage levels like power transformers do. They help in monitoring and protecting electrical systems by detecting overcurrent conditions.
Function: Current transformers provide valuable data for metering and protection purposes. They ensure that the electrical system operates within safe limits by allowing protective devices to react quickly to any issues.
Power transformers are like "voltage traffic cops," directing and adjusting voltage levels to ensure safe and efficient power distribution, current transformers work as the system’s "watchdogs," controlling and measuring electrical currents to provide important information for system protection and monitoring. Source: Difference between current transformers and power transformers.
PLCs

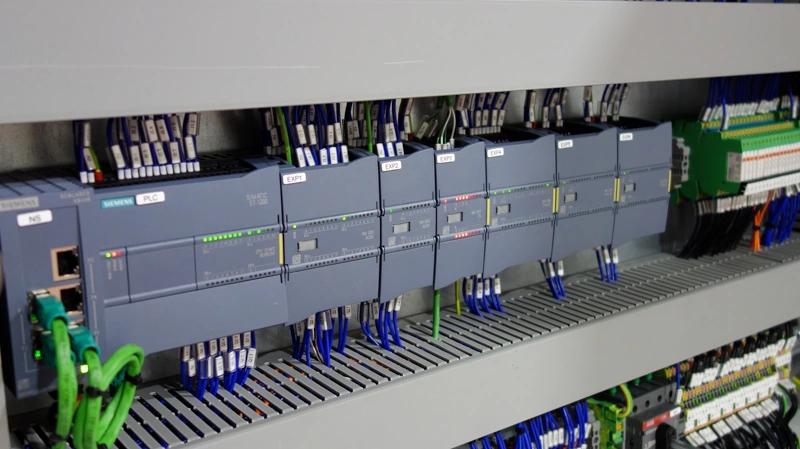

PLCs(Programmable Logic Controllers) are small computers that play a crucial role in controlling and automating electrical systems. Inside an electrical panel. the PLC is like the "brain" that makes all the decisions, monitoring different inputs and controlling devices based on its programming.
What Can PLCs Do in Electrical Panels？
Control Circuit Breakers and Contactors: PLCs can manage circuit breakers and contactors, turning them on or off to protect circuits from overcurrent or short circuits. They can also control contactors to start or stop large machines and motors, ensuring proper operation in the system.
Monitor and Control Relays: PLCs control relays to switch smaller electrical loads or devices. They can turn on/off lights, alarms, or small motors by sending signals to the relays based on preset conditions.
Regulate Busbars: PLCs can monitor the flow of electricity through busbars and adjust the distribution of power to different circuits, ensuring an even and stable power supply across the entire system.
Control Variable Frequency Drives (VFDs): In some systems, PLCs control VFDs that regulate the speed of motors. They adjust the motor speed based on the load, improving efficiency and reducing energy consumption.
Monitor Sensors and Feedback Devices: PLCs constantly receive data from sensors in the electrical panel, such as temperature, pressure, or current sensors. They process this information to adjust operations, like turning off equipment if it overheats or adjusting settings if the system detects an issue.
In short, a PLC helps keep an electrical panel running smoothly and safely by controlling and monitoring different parts of the system.
Meters

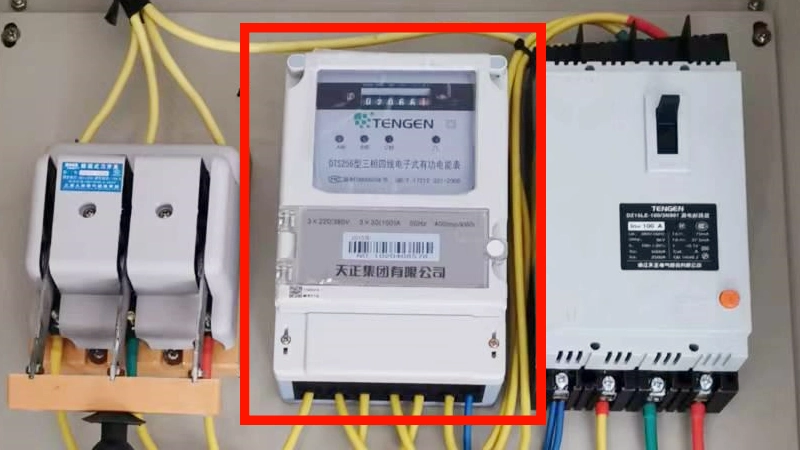

Just like how we rely on our senses to learn the world around us, electrical panels depend on meters and indicators to keep track of key information. Technicians could use these tools to find potential issues before they become serious.
Common Types:
Voltmeters: Measure voltage levels to prevent damage from voltage that’s too high or too low.
Ammeters: Measure the flow of electrical current. Too much current can cause overheating or damage.
Frequency Meters: Measure electrical current frequency, which is crucial for systems like motors or generators that need a consistent frequency.
With out these meters and indicators, it would be hard for technicians to find problems early. They are like the "eyes" of the panel and they provide a clear view of how things are running and helping to keep everything in good condition.
Conclusion
Every distribution panel is filled with smart, essential parts that work together to keep power systems in good condition. From circuit breakers to meters, each part plays a crucial role.
Understanding these components helps electricians and engineers quickly find issues and make sure that electrical systems are safer and more reliable.
