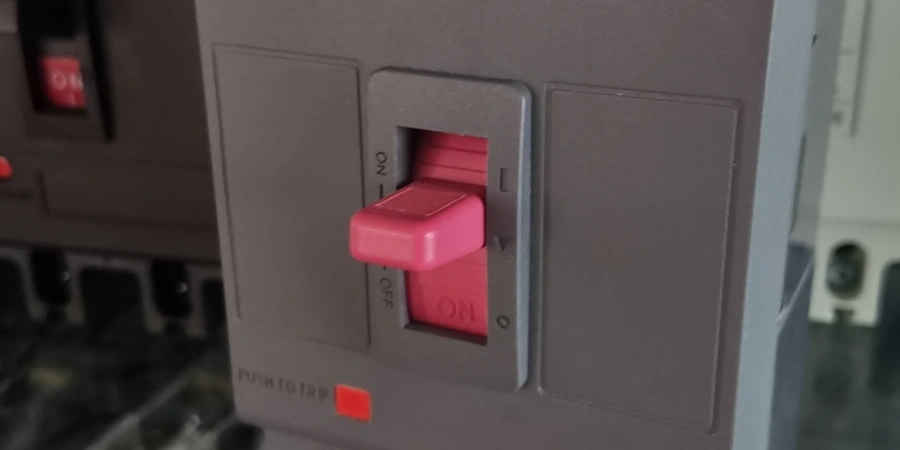

Circuit breakers are everywhere, quietly keeping our electrical systems in check. They trip when something goes wrong, stopping electricity from flowing and preventing damage. Not all breakers trip the same way—some respond to heat, some to sudden surges, and some can even be triggered remotely.
Though often unnoticed, breakers play a key role in protecting both people and equipment. Understanding how they operate gives you a clearer picture of the systems around you and how power is safely managed.
You don’t need to be an electrician to follow along. Even a little knowledge about breakers can change the way you think about electrical safety. It’s not just about preventing overloads—it’s about understanding how electricity is controlled and why those choices matter.
Thermal Trip
A thermal trip mechanism protects a circuit by responding to heat caused by excessive current. Inside the breaker is a small bimetallic strip—two different metals bonded together. When current flows through the circuit, the strip naturally warms up. If too much current flows for too long, the metals expand at different rates, causing the strip to bend. Once it bends far enough, it releases a latch that opens the breaker and interrupts the power flow.
What makes this design clever is its inverse-time response. The breaker reacts slowly to small overloads but much faster to large ones. That delay is intentional—it prevents nuisance trips during short surges, such as when motors start or heavy equipment kicks in. In other words, the breaker “waits” to see if the overload persists before shutting things down.
Thermal trip mechanisms are simple, reliable, and don’t rely on electronics or sensors. They’re ideal for circuits with stable, predictable loads—like lighting panels, feeder circuits, or general-purpose wiring—where protection against prolonged overloads is more important than instant reaction. However, since the bimetal strip needs time to heat up, it can’t respond fast enough to stop a sudden short circuit. That’s where other trip mechanisms, like magnetic or electronic trips, take over.
Magnetic Trip
While thermal trips respond gradually to overloads, magnetic trip mechanisms act instantly. They’re built for one thing—stopping short circuits before serious damage occurs.

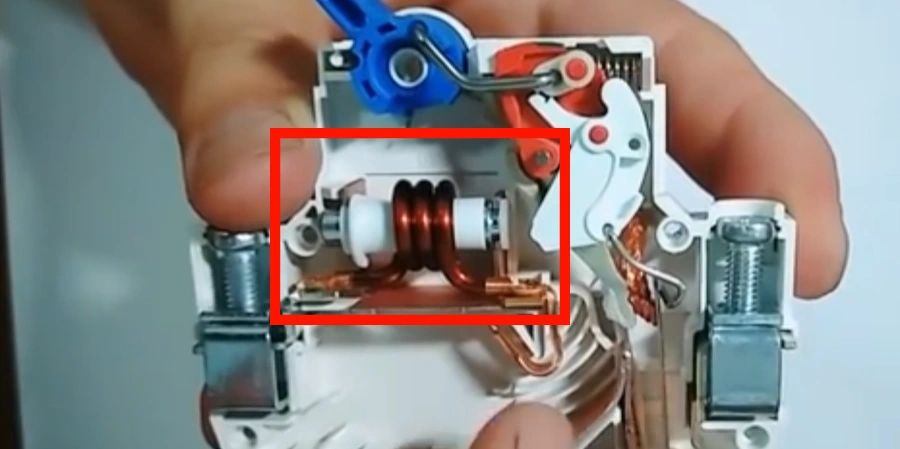

Inside the breaker, the current passes through an electromagnetic coil. Under normal conditions, the coil’s magnetic field is weak and nothing happens. But when a short circuit causes current to surge to many times its normal level, the field becomes powerful enough to pull a small armature. That motion trips the breaker open almost instantly.
Speed is what makes magnetic trips so effective. They can interrupt a fault in just a few milliseconds—often in less than one electrical cycle. That rapid response prevents massive heat buildup, melted conductors, and mechanical stress on equipment. Every millisecond saved reduces the potential for damage.
Because magnetic trips react only to current magnitude, they don’t provide overload protection. They won’t trip from steady overcurrent below their threshold—usually set between five and fifteen times the breaker’s rating. For that reason, they’re often combined with thermal elements or electronic controls to offer both fast fault clearing and long-term overload protection. In systems with multiple breakers, coordination is key to ensure that only the breaker nearest the fault opens.
Thermal-Magnetic Trip

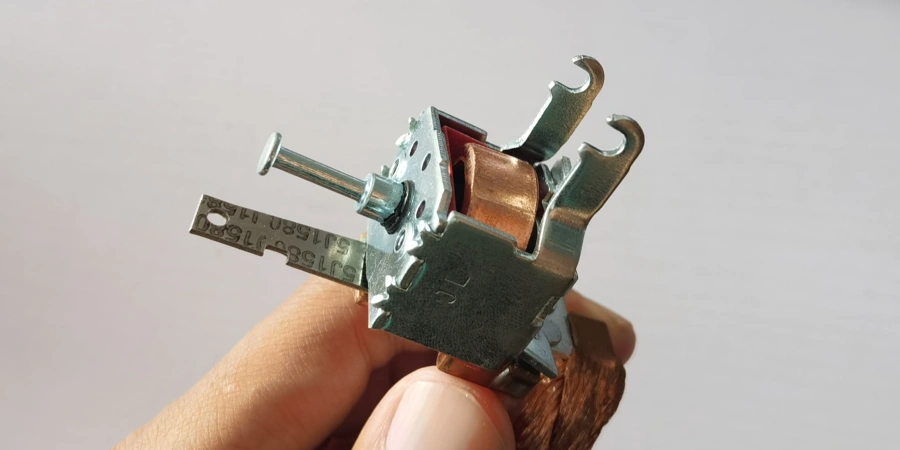

Thermal-magnetic breakers combine the best of both worlds. They have a thermal element to handle sustained overloads and a magnetic element for instant protection against short circuits. This combination covers most overcurrent scenarios in commercial and industrial applications.
The thermal part monitors the current continuously. If it stays above normal for a while, the bimetallic strip bends and trips the breaker, protecting against prolonged overloads. The magnetic coil, on the other hand, reacts immediately when a short circuit occurs. Cross its threshold—usually several times the rated current—and the breaker opens almost instantly. Together, they provide both patience and speed, adapting to different situations without electronics or programming.
Thermal-magnetic breakers are common in distribution panels for a reason. They’re reliable, cost-effective, and give built-in diagnostic cues: a slow trip points to an overload, while an instant trip signals a short circuit. The protection curve shows this behavior clearly—slow response at low overcurrent, a brief gap for harmless surges (like motor startups), then instant tripping at high currents.
Limitations exist. Thermal response depends on ambient temperature, and magnetic thresholds are mostly fixed. For complex systems requiring precise coordination or detailed diagnostics, electronic protection may be needed. Still, for standard branch circuits, feeders, and general distribution, thermal-magnetic breakers are a workhorse solution that balances simplicity, reliability, and versatility.
Electronic Trip
Electronic trip units represent the next level of circuit protection. Instead of relying on heat or magnetic fields, they use current sensors and microprocessors to make decisions. Each breaker pole has a sensor that monitors the current waveform continuously. The processor compares this data to programmable protection curves and sends a trip signal if an overcurrent condition occurs.
The biggest advantage is flexibility. You can set custom trip thresholds, add short-time delays for selective coordination, and adjust protection curves to match your system. This makes electronic trips ideal for complex or critical facilities, like data centers, hospitals, or industrial plants, where precise control and coordination are essential.
Electronic trips also offer advanced monitoring and diagnostics. Many units log trips, high loads, and alarms, and can communicate with building management systems. This allows operators to track real-time loading, spot potential problems before they cause outages, and even receive alerts when breakers approach their limits.
The trade-offs are higher cost, the need for auxiliary power, and slightly more complexity. Technicians must be trained to configure and maintain them. But for systems where reliability, flexibility, and detailed insight matter, electronic trip mechanisms provide protection that mechanical devices simply cannot match.
Shunt Trip
Shunt trips are like the emergency stop buttons of the electrical world. Unlike standard breakers that react to electrical faults, shunt trips let you cut power on command, no matter what’s happening in the circuit. Imagine you could instantly turn off a line from across the room—or across the building—without touching the breaker itself. That’s exactly what a shunt trip does.
Inside the breaker, there’s a small coil called a solenoid. When it gets a signal from an external source—like a fire alarm, an emergency stop button, or a building management system—it trips the breaker mechanically. The result? Power stops flowing immediately, even if the electrical system itself looks healthy.
Shunt trips are versatile. Factories use them to shut down production lines if cooling systems fail, preventing overheating and equipment damage. High-voltage rooms sometimes have shunt trips tied to door interlocks, automatically cutting power if someone opens a panel without proper procedures.
They also shine in emergency stop setups. Hit the big red button, and the shunt trip does the rest—no waiting for a thermal or magnetic element to react. Fire alarm integration is another common application. Air handlers, exhaust fans, and other equipment can be automatically shut down to prevent fire spread, all thanks to a shunt trip.
In short, shunt trips add remote control and safety to breakers, making them ideal for emergency situations or automated shutdowns. Simple in concept but incredibly effective in keeping people and equipment safe.
Undervoltage Trip
Undervoltage release devices protect equipment from restarting under unsafe voltage conditions. Unlike shunt trips that actively force a breaker open, UVRs prevent a breaker from closing—or open it if voltage drops below a set threshold, typically 70–80% of nominal. This ensures that motors, drives, and control systems don’t surge simultaneously when power returns after an outage.
A UVR works with a voltage-sensing coil that maintains a magnetic field to hold the breaker closed. When voltage falls below the threshold, the coil loses strength, releasing the mechanism and opening the breaker. Some UVRs require manual reset, while others can reset automatically or remotely, depending on the application.
The main benefit is controlling inrush currents. In facilities with many motors, uncontrolled restarts can overload circuits, trip upstream breakers, or damage equipment. UVRs allow a controlled, sequenced startup, often coordinated with a PLC or building management system.
Practical considerations include providing a reliable control voltage, setting thresholds appropriately to avoid nuisance trips, and testing the device safely during commissioning. While UVRs consume a small amount of continuous power to hold breakers closed, this cost is minor compared to the protection and operational control they provide. For installations where safe restart and equipment protection are critical, UVR devices are an essential tool.

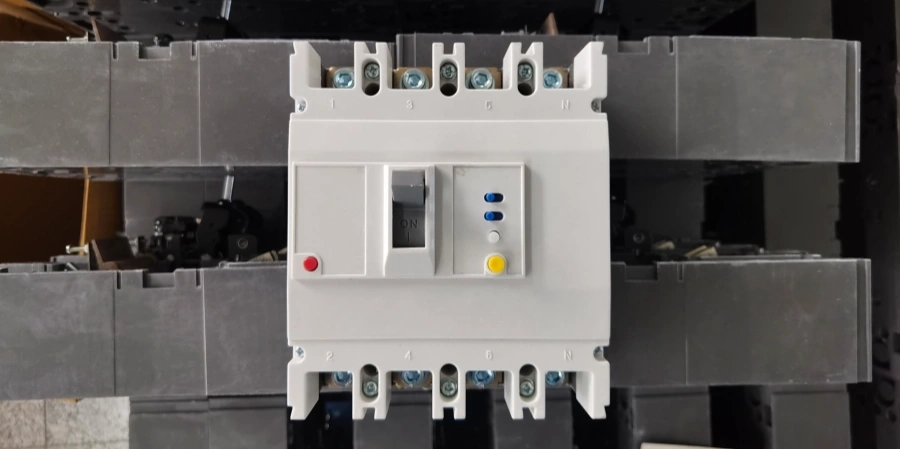

Ground Fault Trip
Ground fault protection safeguards people and equipment from current leaking to ground, which can cause electrocution or fires. Unlike standard overcurrent protection, which responds to overheating or excessive current, ground fault devices detect imbalance between the current leaving on hot conductors and returning on the neutral. Any difference indicates current flowing elsewhere—often through a faulty path to ground.
Detection usually involves a zero-sequence current transformer. All conductors pass through a toroidal core, which senses even small leakage currents. When a fault occurs, the imbalance generates a signal that trips the breaker. Sensitivity varies: personnel protection devices (GFCIs) operate at 4–6 mA, while industrial equipment protection may range from 30 mA to several amps to prevent fires and equipment damage.
Ground fault protection exists in multiple forms: GFCIs for residential use, equipment-ground fault devices for commercial circuits, and feeder-level devices or RCCBs/RCDs for larger installations. Adjustable sensitivity and time delays allow proper coordination so the device closest to the fault trips first.
Proper installation and testing are essential. All conductors must pass through the sensing device, and regular testing ensures the system works correctly. By controlling leakage and coordinating trips, ground fault protection provides critical safety, reducing shock risk, preventing fires, and protecting equipment in residential, commercial, and industrial settings.
Conclusion
Electricity moves silently through our world, guided by these small but powerful devices. Understanding how breakers think and react reminds us that safety isn’t automatic—it’s designed. Every trip, delay, or signal reflects a human choice to protect, control, and respect the energy we depend on.
